● Product Description
Single T5 integrated light with high-efficiency light engine for long life and excellent color to ensure the quality of the lighting. It can be connected to an optional cable or connector.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K |
| Material | Aluminum + PC |
● Features

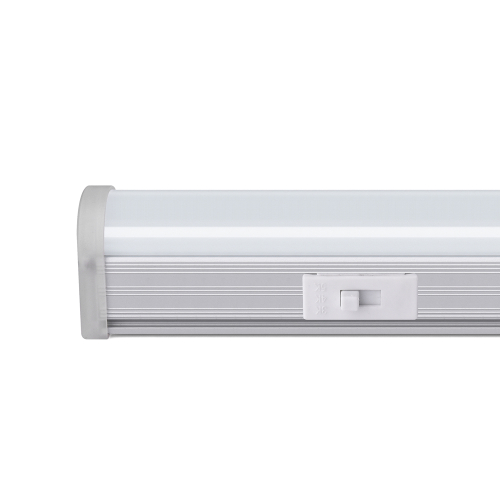

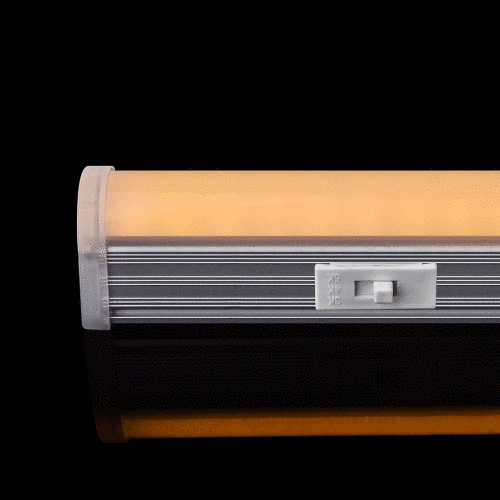

● CCT Tunable With Switch
● One-piece Aluminum chassis

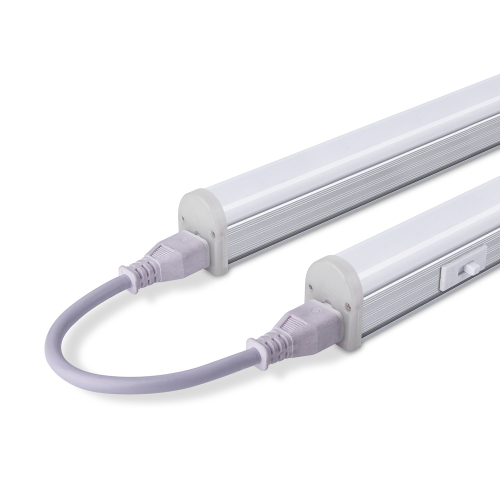

● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● ETL TUV SAA approved
● Applications
● Replaces fluorescent NCF fittings
● Warehouses, factories & food storage,gymnasium
● Car parks & sports facilities, Kitchens,shopping malls
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-T5DL300-4W | 1ft/300mm | 4W | SMD2835 | 440 - 480 | 490*175*230 (mm) 25pcs/ctn |
| LY-T5DL600-7W | 2ft/600mm | 7W | SMD2835 | 770 - 840 | 780*175*230 (mm) 25pcs/ctn |
| LY-T5DL900-12W | 3ft/900mm | 12W | SMD2835 | 1320 - 1440 | 1085*175*230 (mm) 25pcs/ctn |
| LY-T5DL1200-15W | 4ft/1200mm | 15W | SMD2835 | 1650 - 1800 | 1390*175*230 (mm) 25pcs/ctn |
| LY-T5DL1500-20W | 5ft/1500mm | 20W | SMD2835 | 2200 - 2400 | 1690*175*230 (mm) 25pcs/ctn |
| LY-T5DL1800-22W | 6ft/1800mm | 22W | SMD2835 | 2420 - 2640 | 1950*175*190 (mm) 20pcs/ctn |
| LY-T5DL2400-30W | 8ft/2400mm | 30W | SMD2835 | 3300 - 3600 | 2565*175*145 (mm) 15pcs/ctn |
Adaptive Lighting for Everyday Spaces
The CCT Tunable T5 Integrated Tube is designed to offer flexible, user-friendly lighting that fits seamlessly into a variety of environments. Whether you're updating home offices or retail areas, this integrated tube provides adjustable color temperatures ranging from warm 2700K to cool 6500K, inviting you to create the perfect atmosphere. Its compact design and hassle-free installation make it especially practical for homeowners and small business owners seeking an effortless upgrade from traditional fluorescent tubes. With simple switching capability, users enjoy personalized lighting that suits different moods and tasks.
Technical Excellence Meets Practical Design
At the heart of the CCT Tunable T5 Integrated Tube lies a reliable LED engine delivering high efficacy of around 110 to 130 lumens per watt, ensuring bright yet energy-efficient lighting. Constructed with a durable aluminum plus PC chassis, it manages heat effectively, extending product life up to approximately 50,000 hours. Compatible with wide input voltages from AC100-240V to AC100-277V, it supports various power configurations between 4W and 30W across multiple lengths. Certified by ETL, cETL, TUV, CE, and SAA, this integrated tube combines safety and quality assurances with user convenience through its built-in driver and linkable design.
Versatile Applications for Enhanced Environments
This CCT Tunable T5 Integrated Tube is well-suited for a range of settings where lighting quality and flexibility are important. Retail spaces benefit from its ability to adjust color temperature for seasonal changes, highlighting merchandise optimally. Offices and training facilities gain the advantage of tunable light creating comfortable work atmospheres that can shift from warm to cool shades. Additionally, warehouses and exhibition areas appreciate its robust construction and uniform high-CRI illumination, reducing maintenance and boosting energy savings. This product integrates smoothly with existing fixtures to modernize lighting without complexity, offering real-world value to everyday lighting needs.
● Product Advantages
Innovative Structural Design for Seamless Integration
The CCT Tunable T5 Integrated Tube features a patented one-piece aluminum chassis that ensures superior durability and thermal management, extending operational life. Its integrated design eliminates separate drivers, simplifying installation while reducing wiring complexity. The linkable configuration allows multiple tubes to connect seamlessly, adapting to varying space requirements. Compatibility with broad input voltage ranges enhances flexibility for residential and commercial electrical systems. Together, these design choices support easy retrofitting or new installations with minimal disruption.
Reliable Performance and User-Friendly Operation
This integrated tube offers consistent brightness and high energy efficiency, delivering approximately 110-130 lumens per watt. The straightforward CCT tunable switch allows users to effortlessly select the ideal color temperature, enhancing comfort and functionality in diverse environments. Its long lifespan, close to 50,000 hours, minimizes replacement frequency, offering excellent value for users seeking durable lighting solutions. Multiple mounting and connection options increase usability, making it suitable for quick upgrades or new lighting projects.
● Fuctions: Standard Version / Triac Dimmable Version / ON-OFF Swich

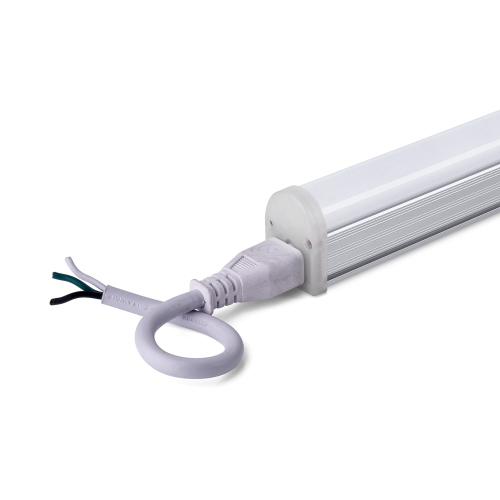

● Connection Way: Lead in wire / M-F Connection / Power cord with Plug

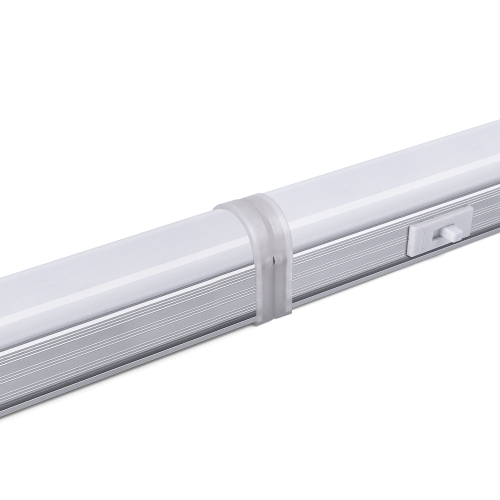

● Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
● Cover: Milky / Clear
● Product Line Drawing (Size:mm) ● Light Distribution Curve
One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
● Use Scenarios
Enhancing Retail Lighting Experience
In retail environments, lighting plays a critical role in product presentation and customer experience. The CCT Tunable T5 Integrated Tube enables store managers to easily adjust color temperature to create appealing displays that highlight merchandise with accurate color rendering. Its energy-saving LED engine lowers operational costs, while certifications such as ETL and CE ensure compliance with safety standards. The switchable color temperature feature supports quick seasonal updates without the need to reinstall fixtures, seamlessly integrating with existing electrical setups and enhancing lighting control strategies.
Optimizing Office and Training Facility Ambiance
Office spaces and training centers benefit from dynamic lighting that adapts to various activities and user preferences. The CCT Tunable T5 Integrated Tube provides versatile ambient lighting shifting smoothly from warm to neutral or cool tones. Its robust aluminum plus PC chassis withstands everyday use, and long life reduces maintenance interruptions. The simple installation and built-in driver reduce downtime, aligning with workplace productivity goals. This lighting solution fits retrofit projects and new constructions alike, blending efficiently into established lighting systems to support healthy, adaptable work environments.
● FAQ
What materials are used in the construction of the CCT Tunable T5 Integrated Tube?
The CCT Tunable T5 Integrated Tube features a durable one-piece aluminum chassis paired with a polycarbonate (PC) cover. This combination offers excellent heat management and long-lasting performance, ensuring reliable operation and energy efficiency.
Can the color temperature be adjusted on the CCT Tunable T5 Integrated Tube?
Yes, the CCT Tunable T5 Integrated Tube allows users to easily select color temperatures from 2700K to 6500K via a simple built-in switch, making it ideal for commercial spaces needing flexible ambient lighting.
Is the CCT Tunable T5 Integrated Tube compatible with existing fluorescent fixtures?
The LED tube is designed for direct retrofit replacement of fluorescent T5 tubes in NCF fittings. Its integrated driver and multiple mounting options simplify installation, reducing wiring complexity and cutting retrofit costs.
What certifications and electrical inputs does this LED tube support?
The product holds ETL, cETL, TUV, CE, and SAA certifications, meeting strict safety and performance standards. It operates on wide input voltages of AC100-277V or AC100-240V at 50/60Hz, suitable for diverse commercial environments.
