● Product Description

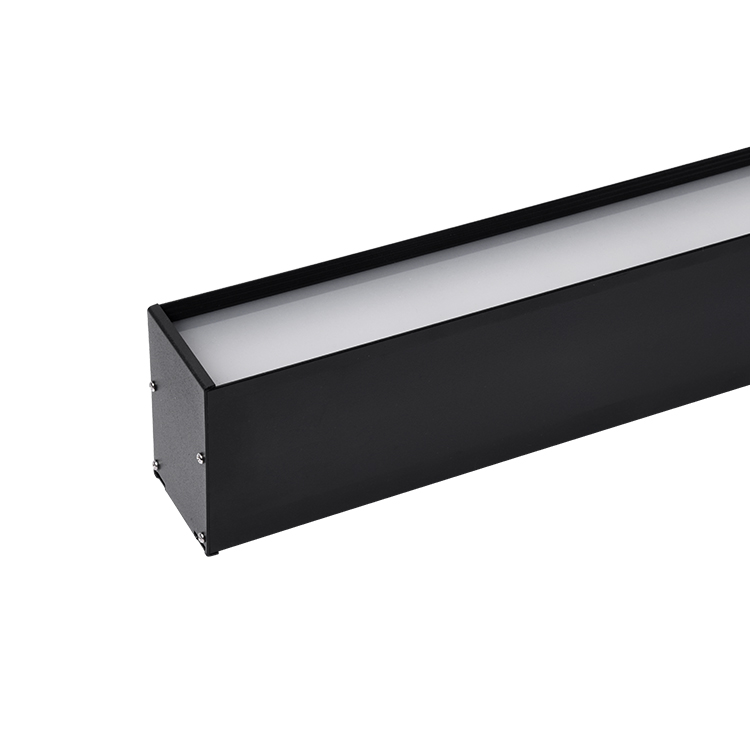

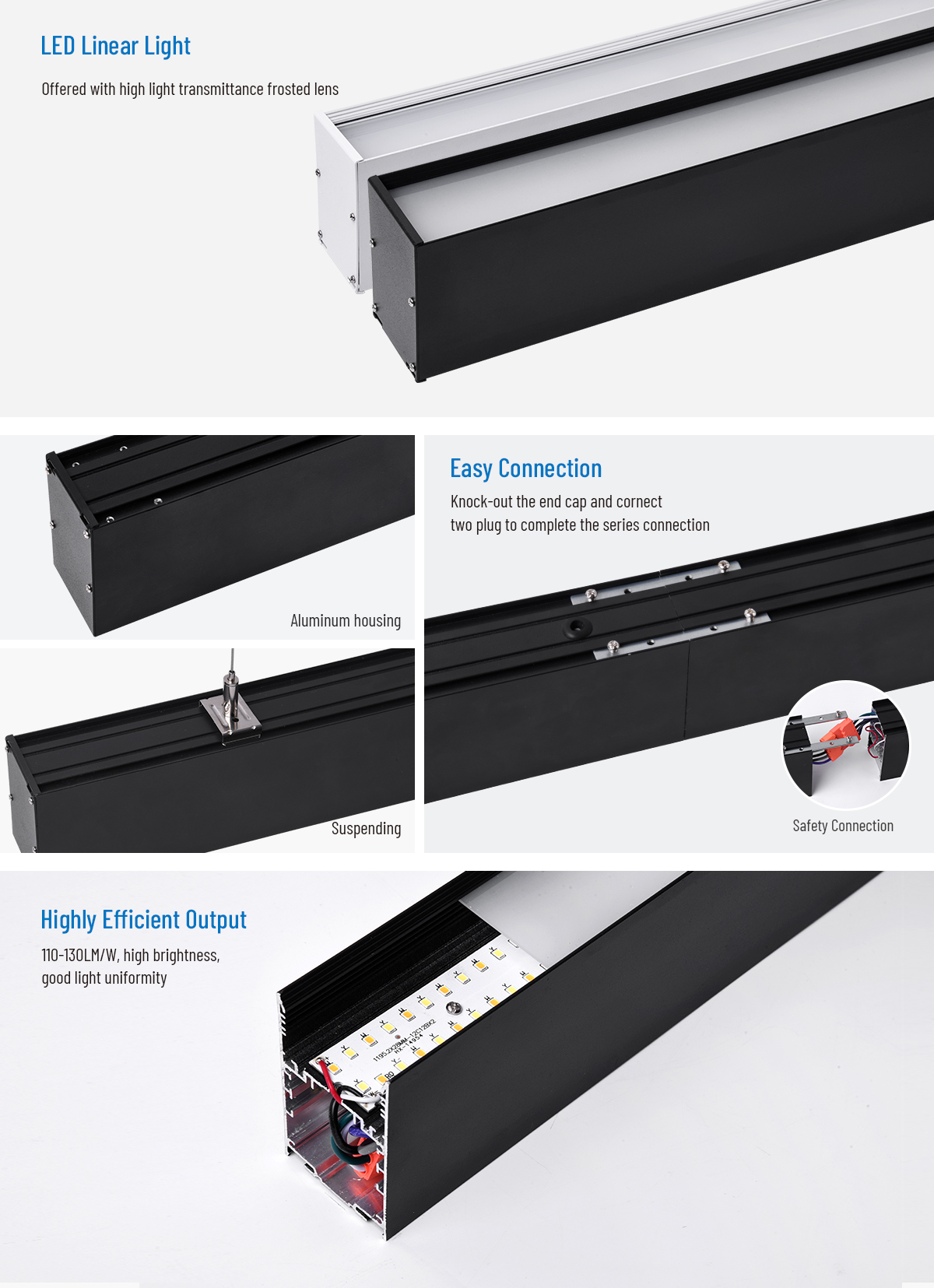

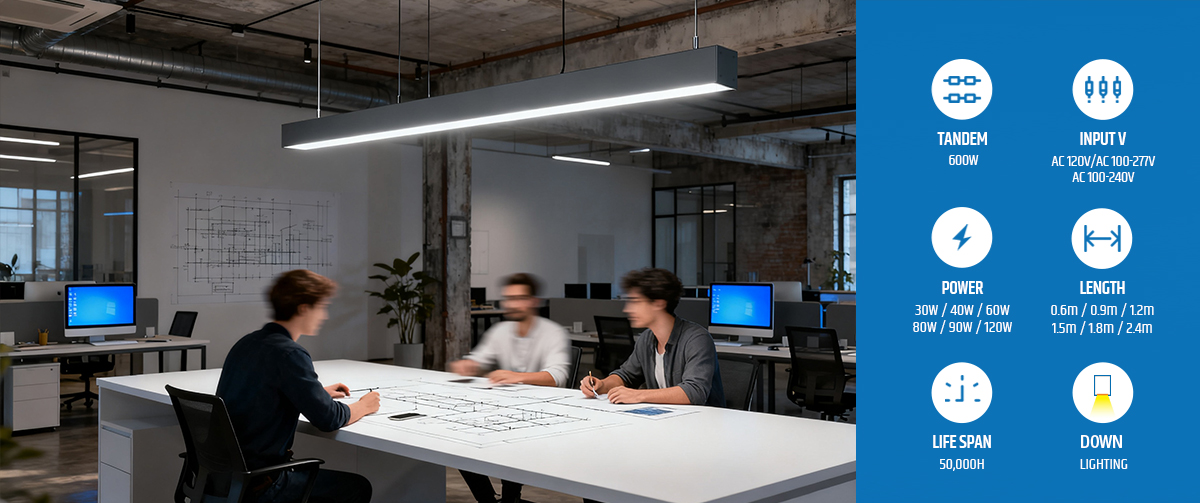

LED Linear Pendant Light is a modern and energy-efficient linear lighting solution designed for commercial as well as industrial applications. Featuring a clean linear profile and suspended installation, this fixture delivers uniform illumination while enhancing the architectural aesthetics of interior spaces. With high-efficiency LED technology and reliable performance, it is an ideal choice for offices, retail environments, and public buildings for your projects. The LED Linear Pendant Light is designed to provide stable, high-quality illumination for a wide range of indoor applications. Equipped with high-efficiency LED chips and a reliable driver system, the fixture delivers bright yet soft light output, ensuring excellent visual comfort while reducing energy consumption. The housing is manufactured from high-grade aluminum, offering efficient heat dissipation and long-term durability. This structural design helps maintain consistent lighting performance and extends the lifespan of the LED linear light, making it suitable for continuous daily operation in commercial and professional environments. With multiple length, wattage, and color temperature options available, this LED linear pendant light can be customized to meet different project requirements. The suspended installation allows the luminaire to create clean, continuous lighting lines, contributing to a modern and organized visual appearance within the space. Advanced optical design ensures even light distribution and reduced glare, making the fixture ideal for workplaces and public areas where visual comfort is essential. Optional dimming and lighting control solutions are available, allowing integration into intelligent lighting systems for enhanced energy efficiency and flexible lighting control. As part of a professional linear lighting solution, the LED Linear Pendant Light complies with international quality and safety standards, making it suitable for global markets. Its modular design also simplifies installation and maintenance, helping to reduce overall project and operating costs. Key Features:
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.9 |
| Efficiency | 120LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -15°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Finish | White or Black |
| Specifications | ||||||||
| Model | Length | Power | CCT | Cover | CRI | PF | Lumens (lm) ±10% | Package |
| LY-SF90L600-30W6 | 2ft/600mm | 30W | 3000K 4000K 5000K 5700K 6000K |
Frosted |
＞80 | ＞0.9 |
3000/3600 | 680*200*190 (mm) 6pcs/ctn |
| LY-SF90L900-40W6 |
3ft/900mm | 40W | ＞80 | ＞0.9 |
4000/4800 | 960*200*190(mm) 6pcs/ctn | ||
| LY-SF90L1200-40W6 |
4ft/1200mm |
40W |
＞80 | ＞0.9 | 4000/4800 |
1250*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1200-60W6 |
4ft/1200mm | 60W |
＞80 |
＞0.9 |
6000/7200 |
1250*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1500-80W6 |
5ft/1500mm |
80W | ＞80 |
＞0.9 |
8000/9600 |
1540*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1800-90W6 |
6ft/1800mm | 90W | ＞80 | ＞0.9 |
9000/10800 | 1820*200*190 (mm) 6pcs/ctn | ||
| LY-SF90L2400-120W6 | 8ft/2400mm | 120W | ＞80 | ＞0.9 |
12000/14400 | 2400*240*190 (mm) 4pcs/ctn | ||

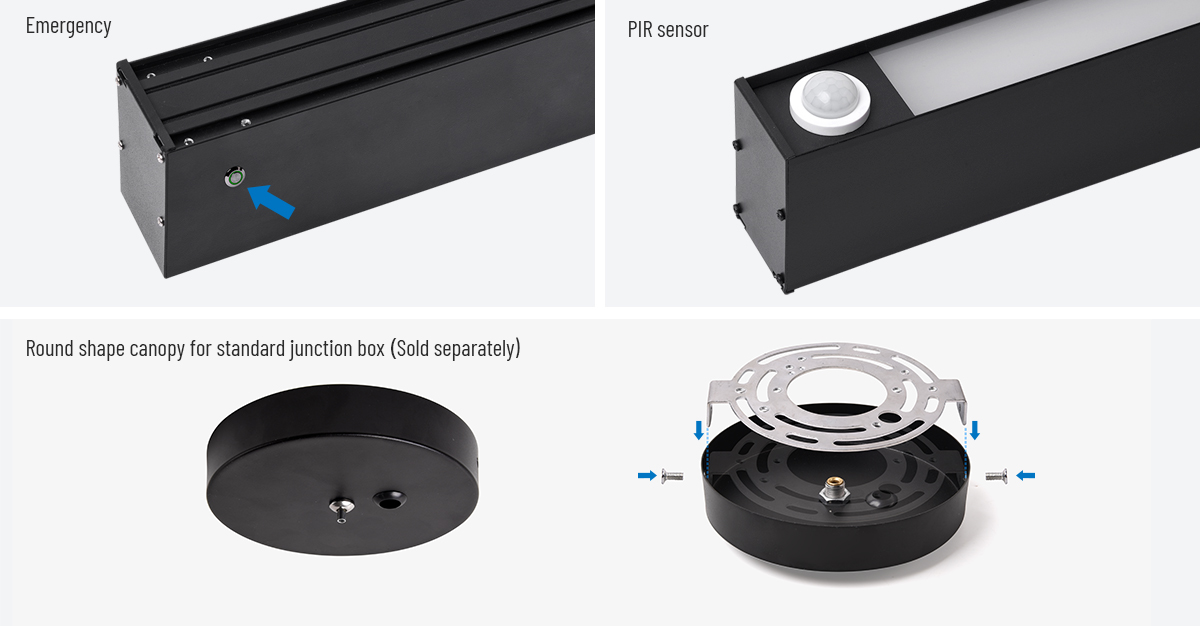

● Options
● Standard Version / High Bright Version
● Emergency lighting version/PIR sensor version
● Installation Type : Standard Clip
● 3 CCT Tunable: 3000K 4000K 5000K or Single fixed CCT
● Applications
LED Linear Pendant Light is suitable for a wide range of indoor commercial and public lighting applications, including: By arranging linear pendant lights in continuous or modular layouts, designers can achieve a clean, consistent lighting effect that enhances both functionality and interior aesthetics.

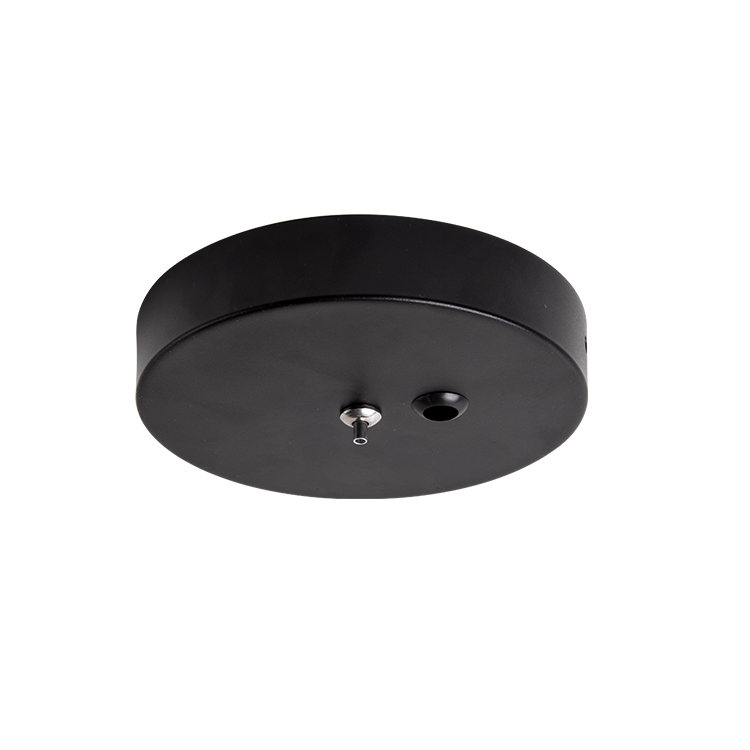

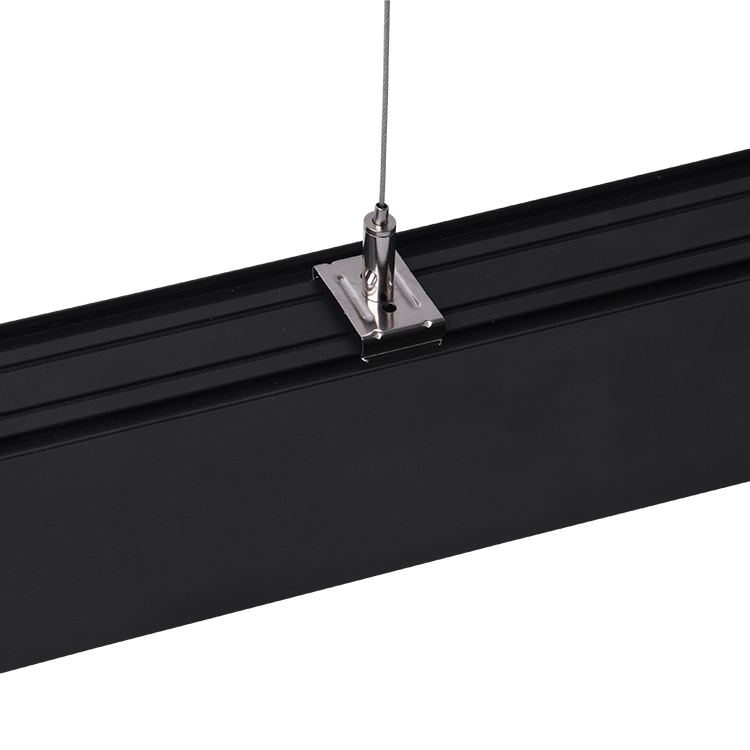

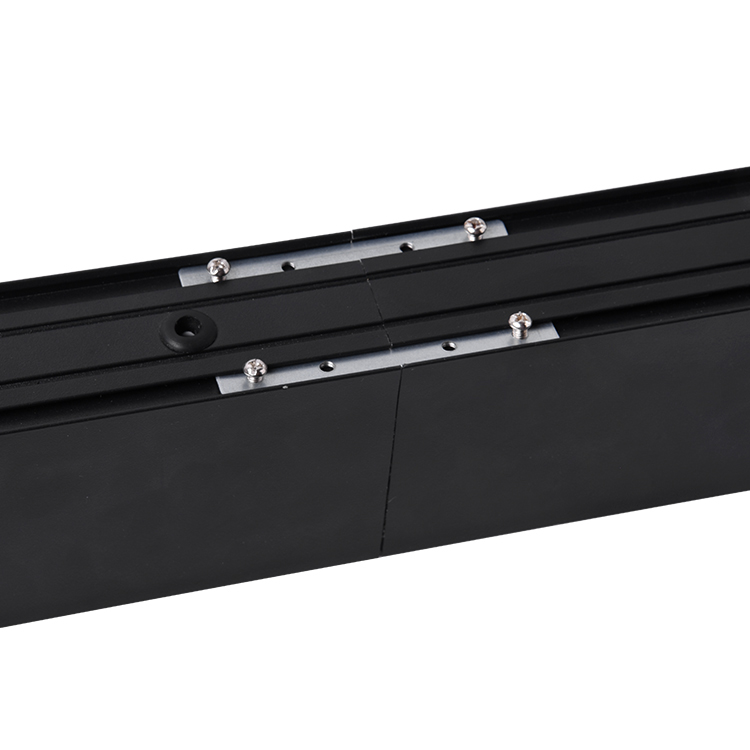

● Installation Type Available
● Product Line Drawing (Size:mm) ● Light Distribution Curve

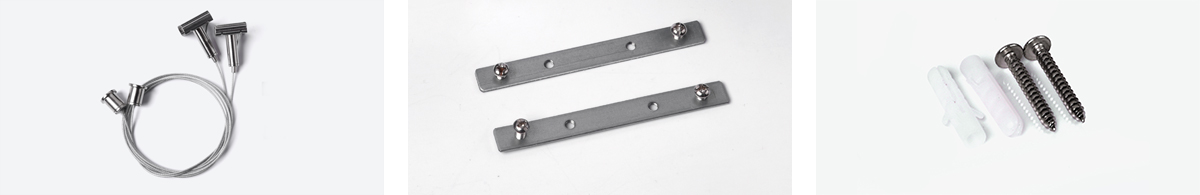

● Standard Accessories
Two *1m hoisting line（custom length available), two connection clips and screws.
● Installation
● Risk Of Electrical Shock: Disconnect Power Before Installing Or Servicing Product.
● Installation should be performed by Licensed / Qualifified Electricians Only.
● Please use it under correct input power range.
● Do not use in the outdoor environment.
● If the product does not operate properly, check the wire connection after the power cut off.

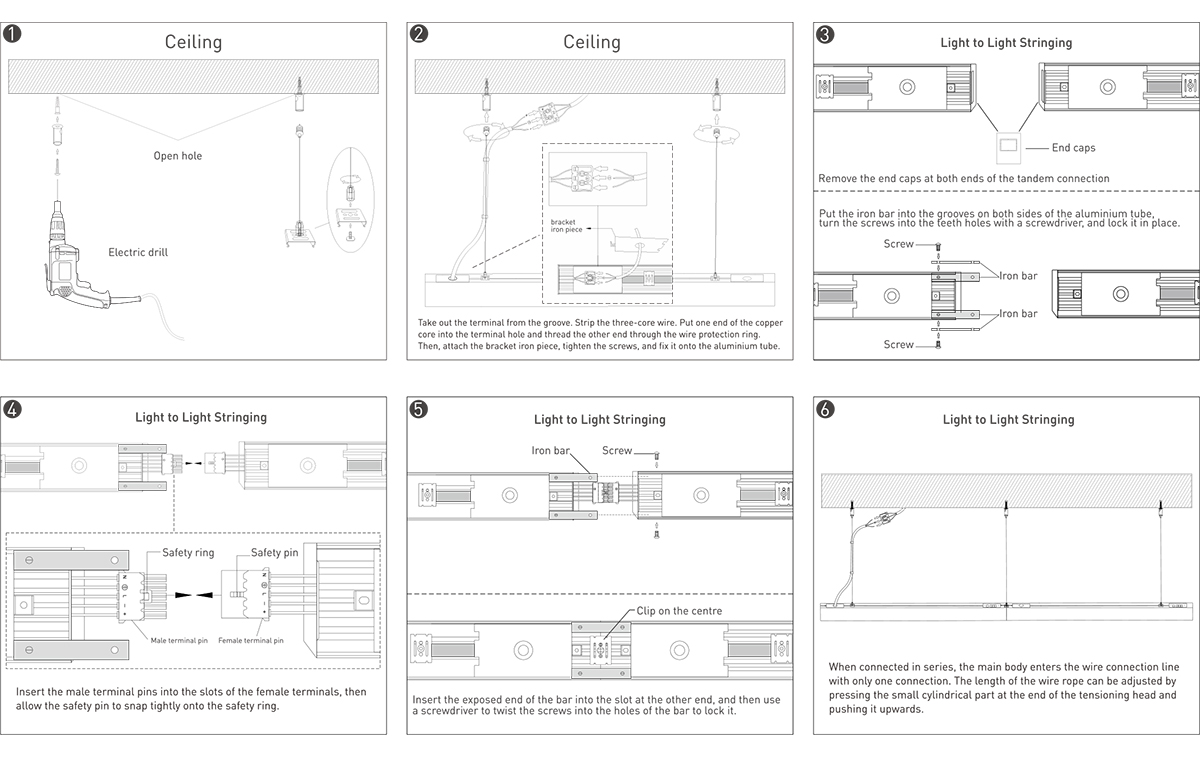

● Follow the diagram for below for proper installation.
