● Product Description
This is a ultra-efficient with 0-10V Dimming LED Linear strip lighting solution that can meet the challenges of your industrial, retail, warehousing and task lighting applications. This fixture deliver lumen that up to 120+ LPW, you can enjoy 70% energy savings over a 2-lamps T8. Multiple lengths, lenses and mounting options put you in control of your application whether it be for performance,aesthetics or the newest technology.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 120-140LM/W |
| Color Index | Ra>80 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -20°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
● Features
● Integrated LED Design

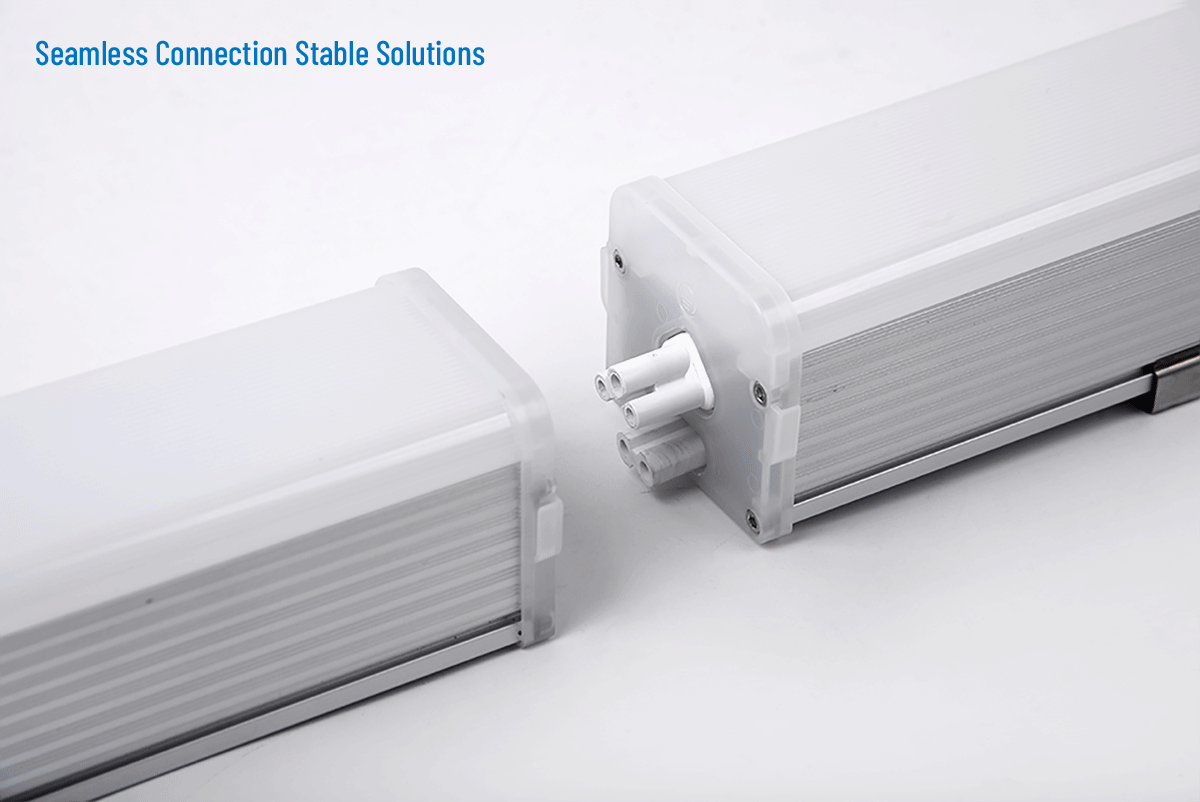

● Seamless Connection
● Easy Installation
● No Flicking, no dark shadows
● Standard 0-10V Dimming
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-SF90L600-30W2 |
2ft/600mm | 30W | SMD2835 | 3600-3900 | 490*225*205（mm）9pcs/ctn |
| LY-SF90L900-40W2 |
3ft/900mm | 40W | SMD2835 | 4800-5200 | 790*225*205（mm）9pcs/ctn |
| LY-SF90L1200-60W2 | 4ft/1200mm | 60W | SMD2835 | 7200-7800 | 1090*225*205 (mm) 9pcs/ctn |
| LY-SF90L1500-80W2 | 5ft/1500mm | 80W | SMD2835 | 9600-10400 | 1390*225*205 (mm) 9pcs/ctn |
| LY-SF90L1800-90W2 | 6ft/1800mm | 90W | SMD2835 | 10800-11700 | 1990*155*145 (mm) 4pcs/ctn |
| LY-SF90L2400-120W2 | 8ft/2400mm | 120W | SMD2835 | 14400-15600 | 2590*155*145 (mm) 4pcs/ctn |
● Options
● Fuctions: Standard Version + 0-10V Dimmable Version

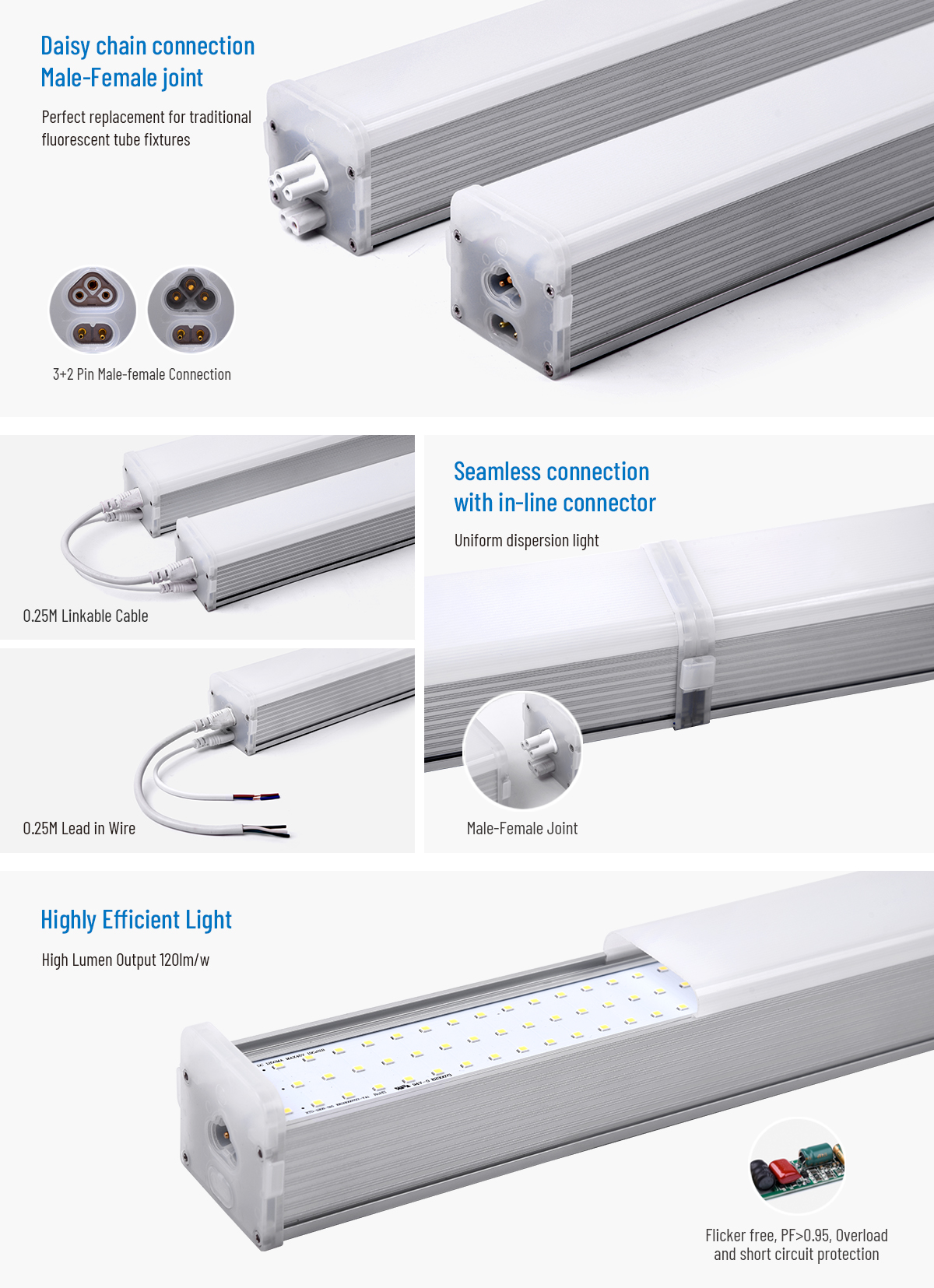

● Connection Way: Lead in wire / M-F Connection / Power cord with Plug
● Installation Type : Standard Surface mounted / Suspending

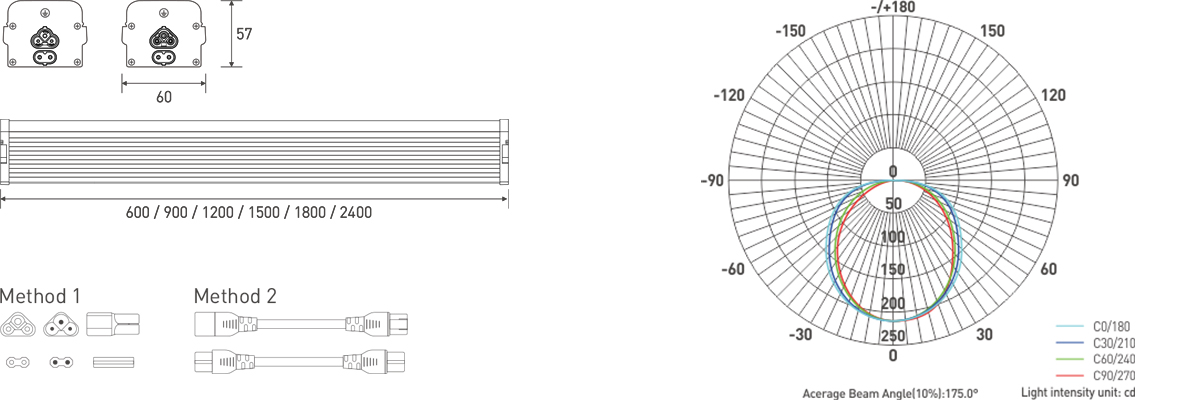

● Product Line Drawing (Size:mm) ● Light Distribution Curve

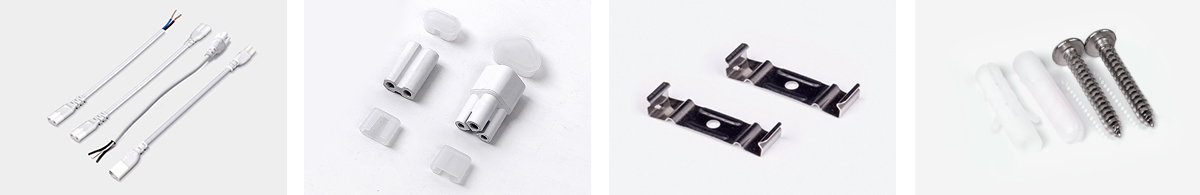

● Standard Accessories
One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized or you can choose if you have 0-10V dimming cables)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram below for proper installation
●Use Scenarios
Retail Store Lighting Retrofit Enhancing Product Visibility
In retail environments, the 0-10V Dimming LED Linear Strip Light serves as a critical component to upgrade traditional fluorescent fixtures, optimizing product displays with crisp, adjustable illumination. Retailers benefit from its flicker-free output and color temperature options ranging from warm to cool white, which heighten visual appeal and improve customer experience. Integration with 0-10V dimmers allows management to fine-tune lighting during different operational hours, aligning with energy-saving strategies. The fixture’s wide length and wattage configurations accommodate diverse store layouts, ensuring uniform brightness across aisles and merchandise displays.

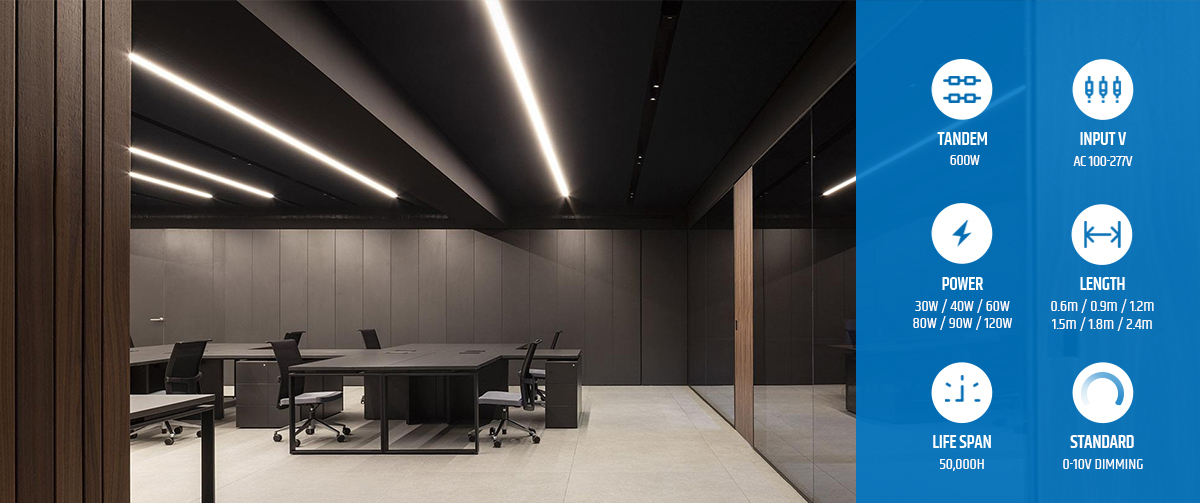

Office Ambient Lighting with Tunable Brightness Control
Office spaces demand lighting solutions that balance occupant comfort and energy efficiency, roles efficiently fulfilled by the 0-10V Dimming LED Linear Strip Light. The luminaire provides uniform ambient illumination adaptable through smooth 0-10V dimming, aiding in reducing eye fatigue and promoting workplace productivity. Its compatibility with common building voltage supplies and dimming controls allows straightforward integration into existing electrical systems and lighting controls. This flexibility provides facility managers with a reliable tool to adjust lighting parameters according to task requirements and daylight availability while maintaining regulatory compliance for indoor lighting standards.
● FAQ
What materials are used in the 0-10V Dimming LED Linear Strip Light construction?
The 0-10V Dimming LED Linear Strip Light features a durable PC (polycarbonate) and aluminum housing with a frosted cover. This combination enhances heat dissipation, protects internal components, and reduces glare for consistent, high-quality illumination.
Can the 0-10V Dimming LED Linear Strip Light be customized for specific lengths or wattages?
Yes, the 0-10V Dimming LED Linear Strip Light is available in multiple lengths (2ft to 8ft) and wattages (30W to 120W), accommodating various retrofit and new installation needs. Customization options help fit diverse ceiling grids and lighting design requirements.
How do I install the 0-10V Dimming LED Linear Strip Light in existing building setups?
The linear strip light operates on standard AC100-277V or AC100-240V power and supports 0-10V dimming protocols, making it compatible with many building control systems. It suits ceiling grid retrofits replacing fluorescent tubes, requiring minimal wiring adjustments.
What maintenance is recommended to ensure long-term performance of this lighting product?
To maintain optimal performance, keep the light's frosted cover clean and inspect the aluminum housing for dust buildup regularly. The 0-10V Dimming LED Linear Strip Light has a lifespan of 50,000 hours, minimizing maintenance needs and ensuring durable, energy-efficient lighting.
