● Product Description
PC LED T5 Integrated Tube is a high-efficiency, linkable LED tube designed to replace traditional fluorescent fixtures. With superior energy savings, long lifespan, and easy surface-mount installation, it's ideal for commercial, residential, and industrial lighting applications.
| Technical Specifications | |
| Input Voltage | AC100-240V/AC120V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.9 |
| Efficiency | 110LM/W |
| Color Index | Ra>80 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -20°C ~ +50°C |
| Main materials | Full PC housing |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Certifcates | Aluminum + PC |
● Features
● High-efficiency integrated LED driver

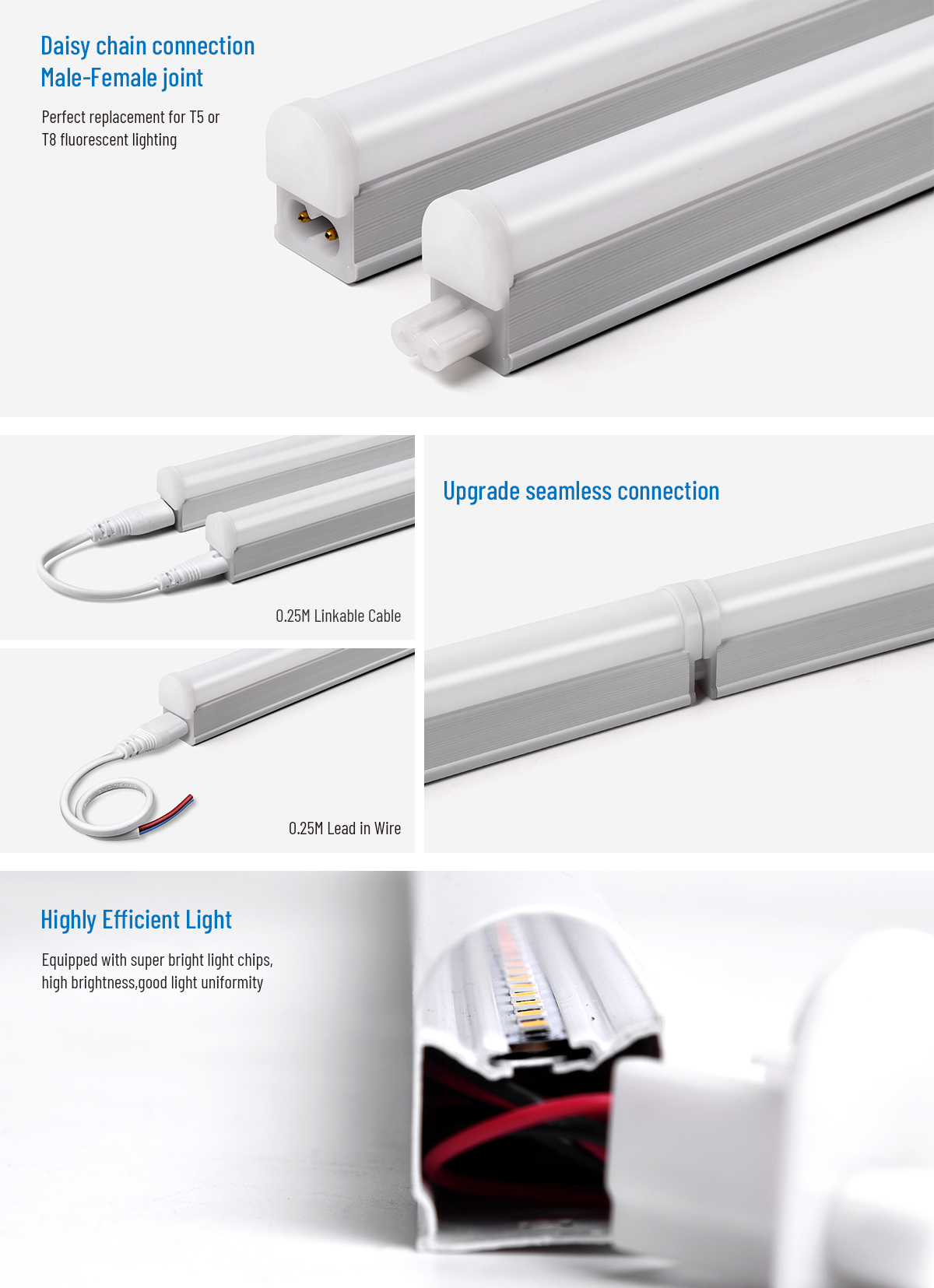

● Linkable for continuous runs
● Seamless & No Dark in-line connection
● Flicker-free, glare-free illumination
● Mercury-free, RoHS-compliant, environmentally safe
| Specifications | |||||||
| Model | Length | Power | CCT | Cover | Led type | Lumens (lm) ±10% | Package |
| LY-T5DL600-7W | 2ft/600mm | 7W | 3000K 4000K 5000K 5700K 6000K |
Frosted |
SMD2835 | 770 | 780*175*230 (mm) 25pcs/ctn |
| LY-T5DL900-12W | 3ft/900mm | 12W | SMD2835 | 1320 | 1085*175*230 (mm) 25pcs/ctn | ||
| LY-T5DL1200-15W | 4ft/1200mm | 15W | SMD2835 | 1650 | 1390*175*230 (mm) 25pcs/ctn | ||

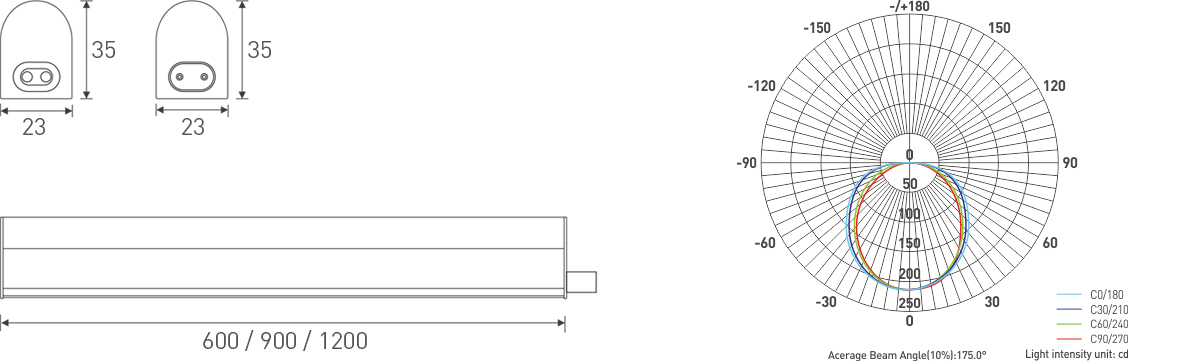

● Product Line Drawing (Size:mm) ● Light Distribution Curve

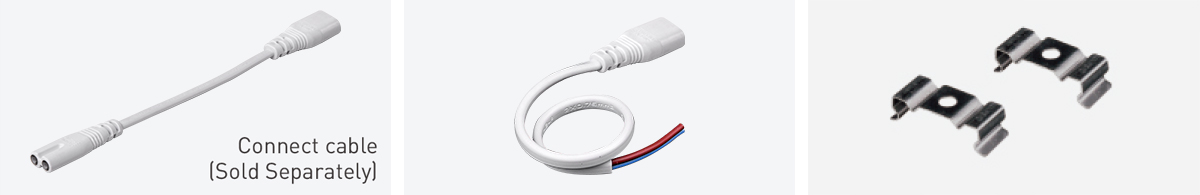

● Standard Accessories
One 250mm power cord, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety

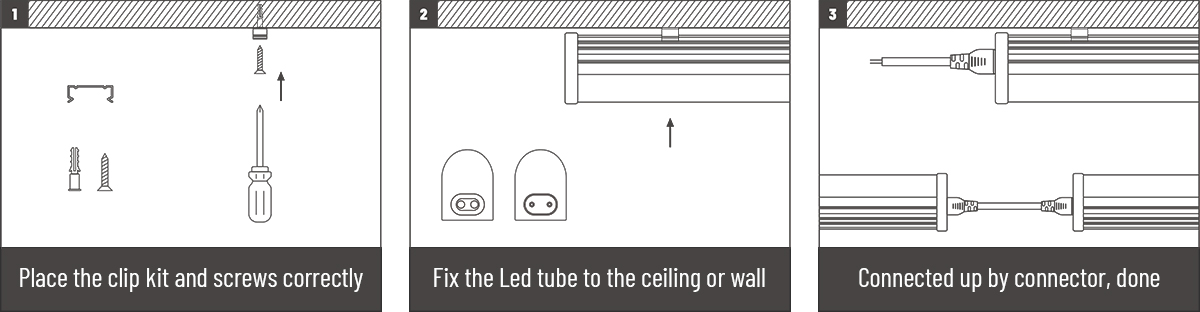

● Follow the diagram for below for proper installation
