● Product Description
Eco T5 LED Integrated Linear Tube Fixture combines advanced LED technology with a sleek, one-piece aluminum and PC housing, delivering bright, uniform illumination while significantly reducing energy consumption compared to conventional fluorescent solutions. Built with a high-efficacy light engine, it achieves 110–130 lm/W luminous output and CRI > 80, ensuring excellent color rendering and visual clarity across a wide range of environments.
Featuring a patented male-female linkable design and seamless in-line connection, this Eco T5 integrated tube light eliminates dark gaps in continuous lighting installations, making it ideal for long runs of linear lighting. Durable materials and robust internal drivers ensure reliable operation with minimal maintenance over an extended service life of up to 50,000 hours.
This integrated LED linear tube fixture operates on a universal input voltage (AC100–277V) and is certified by major safety and performance standards, delivering stable lighting performance for commercial, industrial, and residential spaces. Its versatility and dependable performance make it a cost-effective choice for both retrofit and new lighting projects.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| LED Chips | SMD2835 |
| Power Factor | PF>0.9 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>80 (>90 Available) |
| Dimmable | Triac Dimmable |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -20°C ~ +50°C |
| Finish | Silver (Can Custom colour) |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
● Main Features
● One-piece aluminum chassis
● Patent Male-female linkable design
● Seamless & no dark in-line connection
● ETL TUV CE RCM approved
● Universal standard surface mounting application
LED T5 Integrated Linear Lighting is an ideal solution for multiple environments such as coves and soffits, retail displays, undershelf, undercabinet, and step lighting. The Eco LED T5 Integrated Lights are designed to perform efficiently in conditions where fluorescent, halogen, and low-voltage luminaries have traditionally been used. T5 LED Fixture incorporates integral drivers which are self-supporting and can be surface mounted. Individual units can be plugged together for continuous lengths up to 600W Connection.
LED T5 Integrated Lights can be used for applications that require low maintenance, low energy consumption, and low operating temperatures, with their high lumen output and long life, these LED T5 fixtures are the answer.
Available in 1-8ft length,, 4w-30W, 2700K-6500K CCT with power cord, connection cable, small connector, and mounting hardware included.

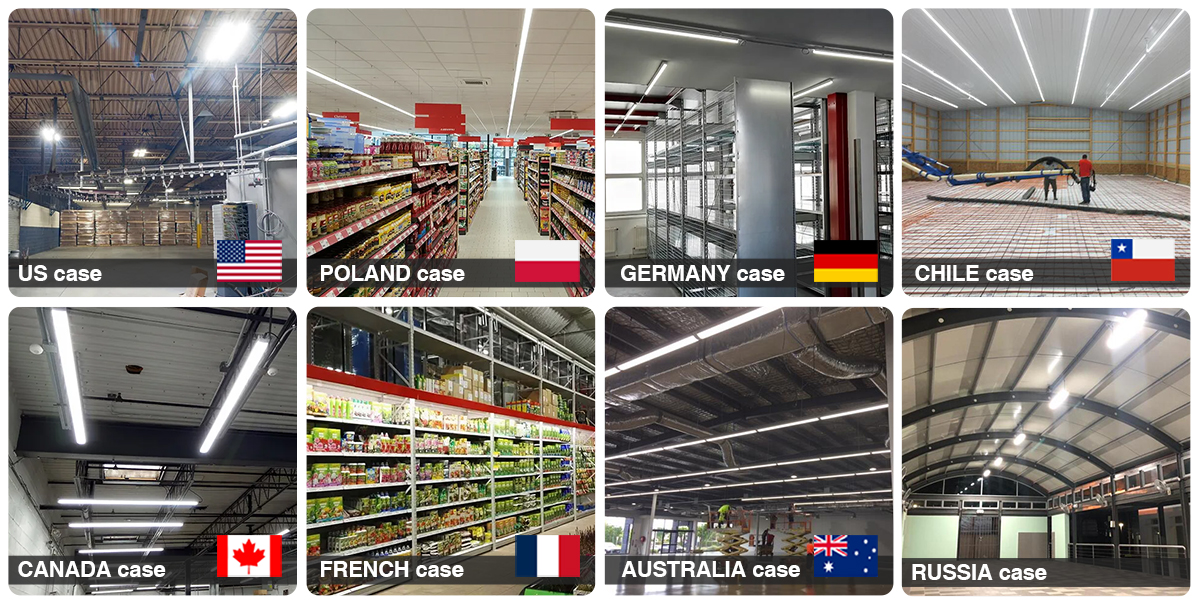

● Applications
Eco T5 LED Integrated Linear Tube Fixture is suitable for a variety of indoor lighting applications, including:
● Replaces fluorescent NCF fittings
● Decorative lighting for Tradeshows, Exhibition, and Retail Displays
● Downlighting or uplighting applications
● Backlighting or edge-Lighting
● Under-cabinet, under-counter, or cove lighting
● Supermarkets and retail aisles
● Display lighting for showcases and shelves
● Hospitality and commercial building interiors
● Ideal applications for bread display cases, medical equipment, display racks, power distribution cabinets
These usage scenarios benefit from the fixture’s bright illumination, uniform light distribution, and low maintenance requirements.
| Specifications | ||||||||
| Model | Length | Power | CCT | Cover | PF | CRI | Lumens (lm) ±10% | Package |
| LY-T5DL300-4W | 1ft/300mm | 4W | 3000K 4000K 5000K 5700K 6000K |
Frosted Clear |
＞0.9 | ＞80 | 440 - 480 | 490*175*230 (mm) 25pcs/ctn |
| LY-T5DL600-7W | 2ft/600mm | 7W | ＞0.9 | ＞80 | 770 - 840 | 780*175*230 (mm) 25pcs/ctn | ||
| LY-T5DL900-12W | 3ft/900mm | 12W | ＞0.9 | ＞80 | 1320 - 1440 | 1085*175*230 (mm) 25pcs/ctn | ||
| LY-T5DL1200-15W | 4ft/1200mm | 15W | ＞0.9 | ＞80 | 1650 - 1800 | 1390*175*230 (mm) 25pcs/ctn | ||
| LY-T5DL1500-20W | 5ft/1500mm | 20W | ＞0.9 | ＞80 | 2200 - 2400 | 1690*175*230 (mm) 25pcs/ctn | ||
| LY-T5DL1800-22W | 6ft/1800mm | 22W | ＞0.9 | ＞80 | 2420 - 2640 | 1950*175*190 (mm) 20pcs/ctn | ||
| LY-T5DL2400-30W | 8ft/2400mm | 30W | ＞0.9 | ＞80 | 3300 - 3600 | 2565*175*145 (mm) 15pcs/ctn | ||
● Options

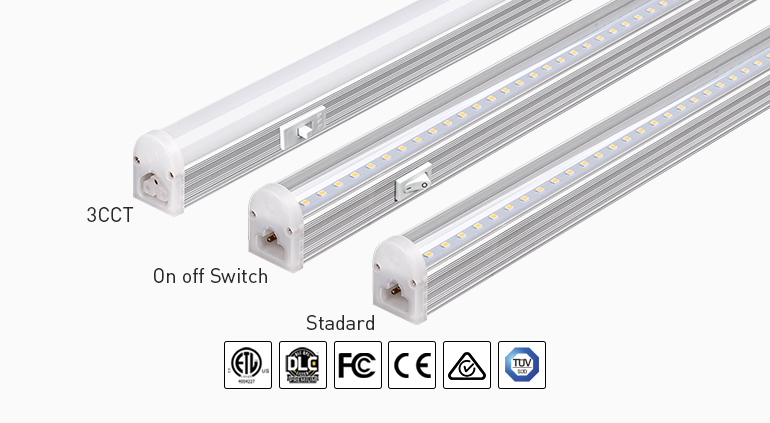

● Fuctions: Standard Version / Triac Dimmable Version / ON-OFF Swith / 3CCT Switchable Version
● Connection Way: Lead in wire / M-F Connection / Power cord with Plug
● Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
● Cover: Milky / Clear
● Product Line Drawing (Size:mm) ● Light Distribution Curve

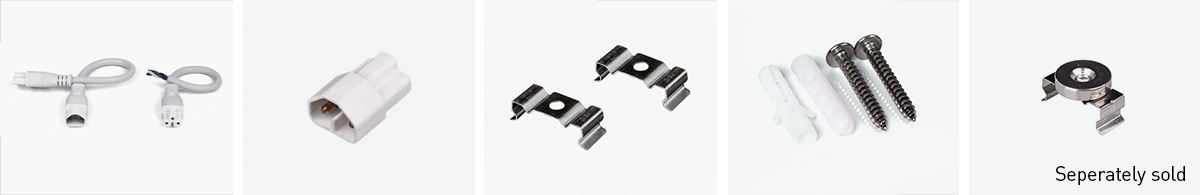

● Standard Accessories
One 250mm (9.84'') power cord, one 250mm (9.84'') connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)
Magnetic Clip available for more easy installation
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram below for proper installation
● FAQs
Q1: What makes this Eco T5 LED Integrated Linear Tube Fixture different from a standard fluorescent tube?
A: It offers higher energy efficiency (110-130 lm/W), longer lifespan (up to 50,000 hours), and superior light quality with high CRI, reducing both energy consumption and maintenance.
Q2: Can multiple fixtures be linked together?
A: Yes. Thanks to its patented male-female linkable design, multiple units can be connected inline seamlessly without dark spots.
Q3: What color temperatures are available?
A: This fixture supports multiple CCT options including 3000K, 4000K, 5000K, and 6000K to suit various lighting needs.
Q4: Is this LED tube suitable for retrofit projects?
A: Yes. The Eco T5 LED fixture is ideal for replacing fluorescent T5/T8 lighting in retrofit or new installations, with universal voltage and easy mounting.
Q5: Where is this type of lighting most effective?
A: It excels in areas that require bright, consistent illumination such as retail stores, offices, warehouses, and display environments.
