● Product Description
5080 LED Linear Light - Frosted PC cover is a professinal linear lighting product that delivers bright light in targeted which serves as an ideal lighting solution for offices, subway stations, supermarkets, and airports. Featuring a frosted PC cover with exceptional light transmittance,providing you softer and more uniform light for enhanced visual comfort.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.9 |
| Efficiency | 100-120LM/W |
| Color Index | Ra>80 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -15°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Finish | White or Black |

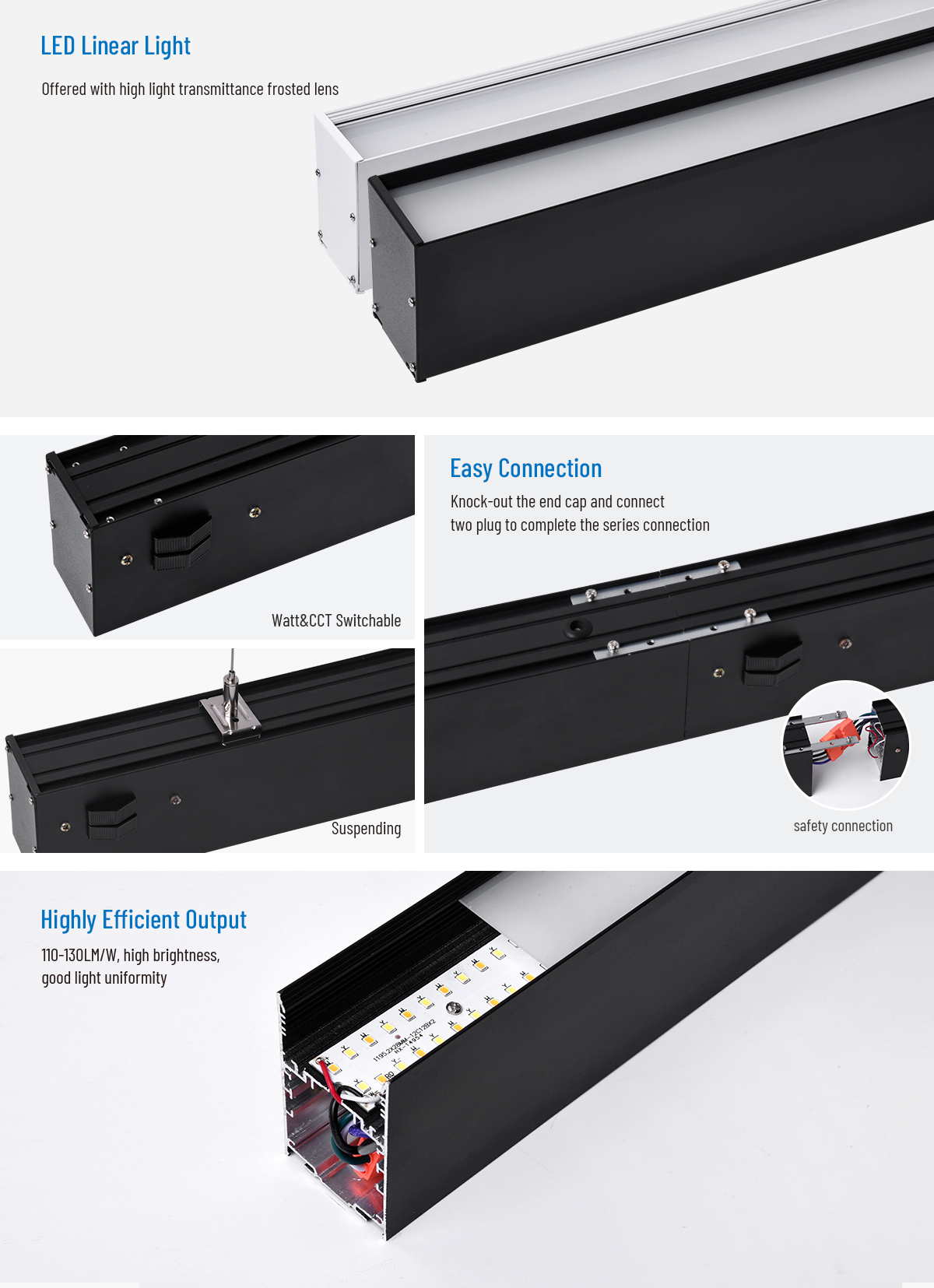

● Features
● Three switchable color temperature or one specifiable color temperature.
● Made of recycled aluminum housing with great heat sink.
● Integral specifiable dimmable drivers or PoE.
● WELL Building Standard compatible.
| Specifications | ||||||||
| Model | Length | Power | CCT | Cover | CRI | PF | Lumens (lm) ±10% | Package |
| LY-SF90L600-30W6 | 2ft/600mm | 30W | 3000K 4000K 5000K 5700K 6000K |
Frosted |
＞80 | ＞0.9 |
3000/3600 | 680*200*190 (mm) 6pcs/ctn |
|
LY-SF90L900-40W6
|
3ft/900mm | 40W | ＞80 | ＞0.9 |
4000/4800 | 960*200*190(mm) 6pcs/ctn | ||
| LY-SF90L1200-40W6 |
4ft/1200mm |
40W |
＞80 | ＞0.9 | 4000/4800 |
1250*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1200-60W6 |
4ft/1200mm | 60W |
＞80 |
＞0.9 |
6000/7200 |
1250*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1500-80W6 |
5ft/1500mm |
80W | ＞80 |
＞0.9 |
8000/9600 |
1540*200*190 (mm) 6pcs/ctn |
||
| LY-SF90L1800-90W6 |
6ft/1800mm | 90W | ＞80 | ＞0.9 |
9000/10800 | 1820*200*190 (mm) 6pcs/ctn | ||
| LY-SF90L2400-120W6 | 8ft/2400mm | 120W | ＞80 | ＞0.9 |
12000/14400 | 2400*240*190 (mm) 4pcs/ctn | ||
● Options
● Standard Version / High Bright Version
● Linkable version（Maximum series-connected power≤600W）/ Non-linkable version

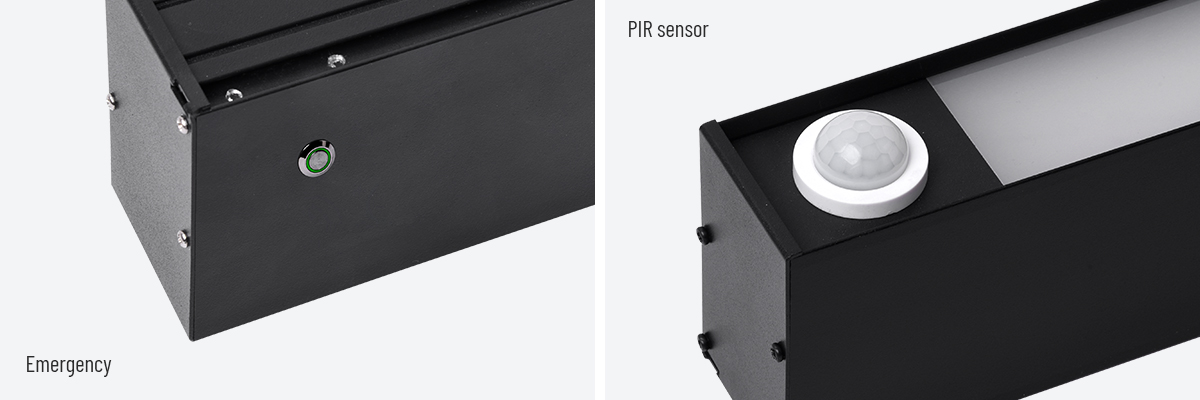

● Emergency lighting version/PIR sensor version
● Installation Type : Standard Clip
● One specificable color temperature and non-dimmable version
One specificable color temperature and dimmable version
Three switchable color temperature and dimmable version
● Installation Available
● Product Line Drawing (Size:mm) ● Light Distribution Curve

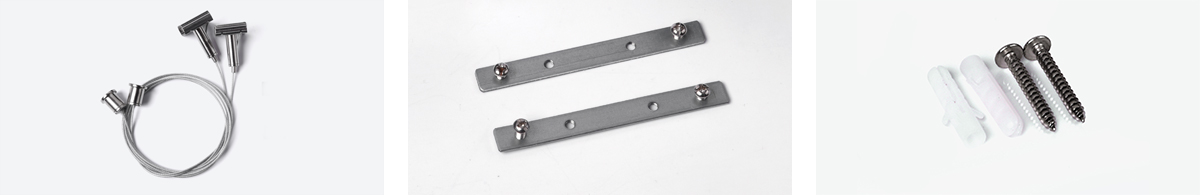

● Standard Accessories- Suspending version
Two *1m hoisting line（custom length available), two connection clips and screws.
● Installation Options：Wall mounting clips / Ceiling mounting clips / Round shape canopy
● Installation
● Risk Of Electrical Shock: Disconnect Power Before Installing Or Servicing Product.
● Installation should be performed by Licensed / Qualifified Electricians Only.
● Please use it under correct input power range.
● Do not use in the outdoor environment.
● If the product does not operate properly, check the wire connection after the power cut off.
● Follow the diagram below for proper installation.

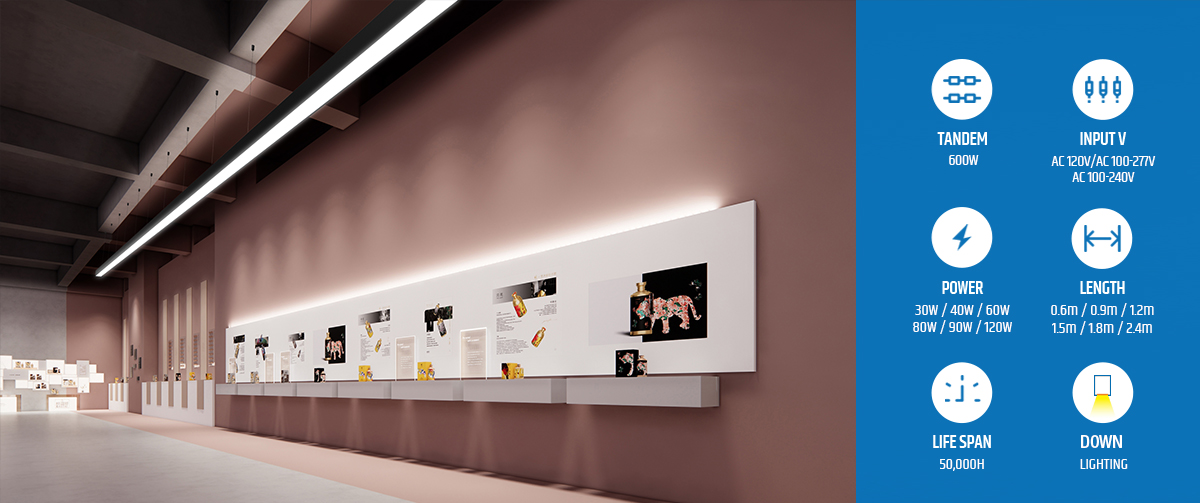

Modern Linear Design for Versatile Applications
LONYUNG’s frosted LED linear light combines contemporary design with high-performance illumination. Whether mounted as a linear led ceiling light or adapted for under cabinet light setups, its versatile form factor fits a variety of commercial, industrial, and residential environments.
Soft Frosted Diffuser for Enhanced Light Quality
The frosted diffuser evenly spreads light, reducing glare and enhancing comfort. This makes the linear led fixture ideal for workspaces requiring comfortable yet bright lighting, such as office meeting rooms, retail displays, showroom, dinning room or any other suitable spaces.
Energy-Saving LED Technology
With integrated LED chips and efficient power management, this led linear light delivers high lumen output with low energy consumption, outperforming traditional fluorescent systems while maintaining excellent durability and reliability.
Easy Installation and Compatibility
Designed for seamless installation, this light is compatible with suspended mounting, surface mounting, and continuous row linking. It works perfectly with ufo high bay light systems in industrial spaces, providing layered lighting solutions for diverse applications.
Product Advantages:
About Us - LONYUNG Lighting
Founded in 2010, LONYUNG Lighting has grown into a leading innovator in the commercial and industrial LED lighting industry. With a strong commitment to technology, design, and sustainability, we specialize in creating linear lights, LED linear high bay lights, and tri-proof lights that redefine lighting performance. Our manufacturing facility adheres to international standards, ensuring high-quality products trusted by global customers across retail, office, industrial, and warehouse applications.
Why Choose Us
FAQ
1. Who are we?
LONYUNG is a professional manufacturer of commercial and industrial LED lighting, established in 2010. Based in China, we design, manufacture, and export high-performance LED integrated tube, linear lights, tri-proof lights, and high bay lights to customers worldwide.
2. How can we guarantee quality?
We strictly follow ISO 9001 quality management standards, conduct 100% product inspection before delivery, and hold certifications such as ETL, DLC, RCM, TUV, CE, and RoHS to guarantee product reliability.
3. What can you buy from us?
4. Why should you buy from us, not from other suppliers?
