● Product Description
LED VAPOR TIGHT FIXTURE can replace traditional lampsand heavy-duty linear lamps.They are dust-proof,waterproof and impact resistant for use in harsh environments. Widely used in commercial lighting,warehouse lighting, parking lot lighting,supermarketlighting, canopies and so on.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -20°C ~ +50°C |
| UGR | <17 |
| IP Rating | IP65 |
| CCT | 3000K,4000K,5000K,6000K |
| Dimming Option | 0-10V |
● Features
● Durable polycarbonate diffuser eliminates glare

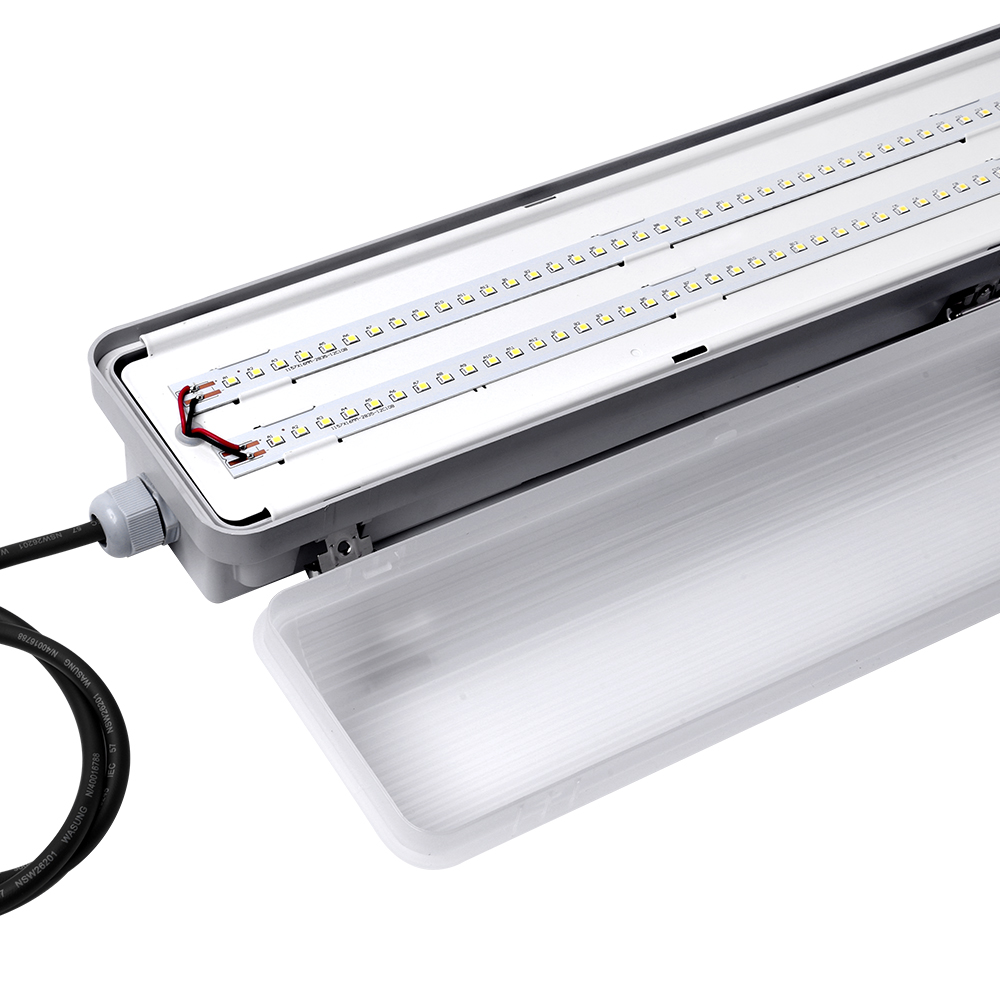

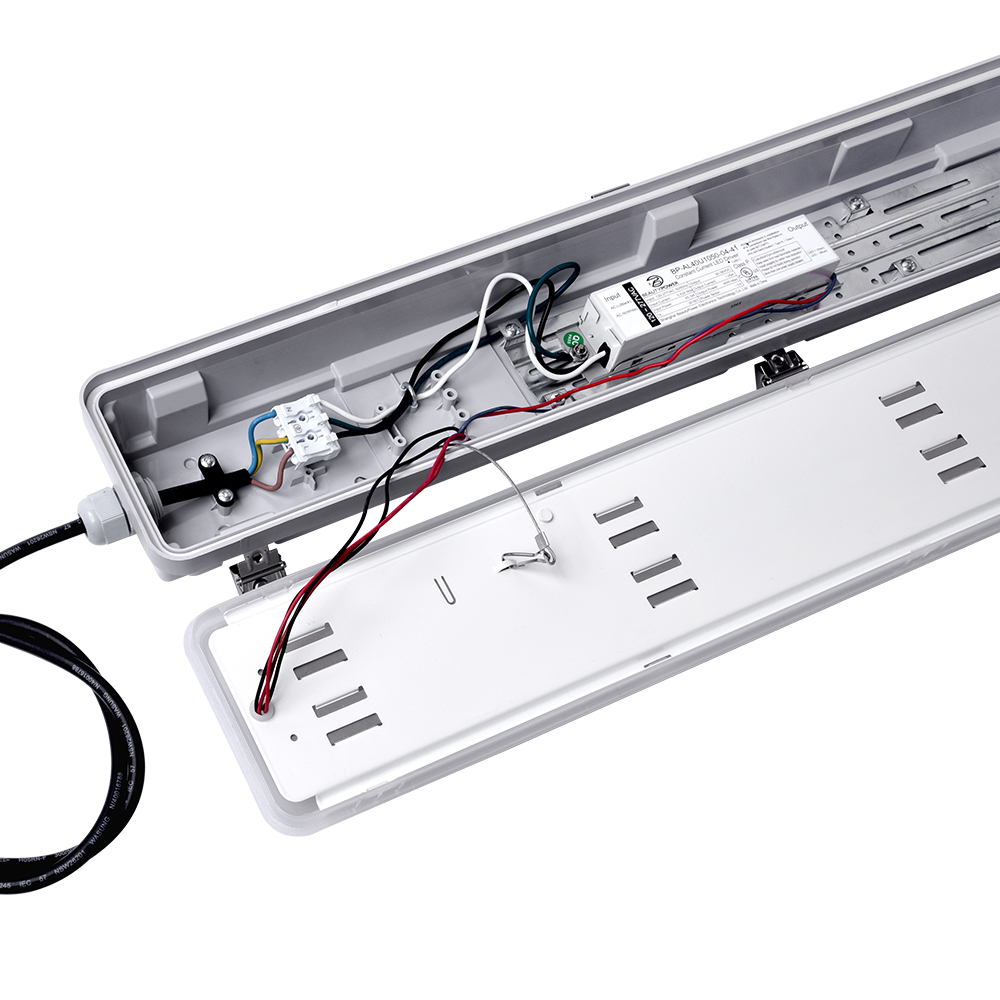

● Flat steel reflector system holds all electrical components
● 130lpw ultra-high efficiency delivers superior performance.
● Tool-less design driver cover snap into housing for easy installation
● Applications
● Airport, Train station, Subway, Parking lot
● Factory, Workshops, Production line, Warehouse
● Tunnel, Basement, Storage, Cold storage etc
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-SF90L600-20W | 2ft/600mm | 20W | SMD2835 | 2600 | 710*235*285 (mm) 6pcs/ctn |
| LY-SF90L1200-40W | 4ft/1200mm | 40W | SMD2835 | 5200 | 1310*235*285 (mm) 6pcs/ctn |
| LY-SF90L2400-80W | 8ft/2400mm | 80W | SMD2835 | 10400 | 2460*125*195 (mm) 2pcs/ctn |
Purpose-Built Lighting for Tough Environments
The LED Vapor Tight Fixture is designed for homeowners and facility managers who need reliable lighting in challenging settings. Whether upgrading your garage, basement, or workshop, this fixture delivers durable, dust-proof, and waterproof illumination. Its sealed construction protects against debris and moisture, ensuring consistent light output and minimal maintenance. Perfect for anyone looking to enhance safety and ambiance in damp or dusty areas, this fixture combines resilient design with practical versatility, supporting various room sizes and lighting preferences.
High-Performance Features and Specifications
Crafted with a polycarbonate diffuser and flat steel reflector, the LED Vapor Tight Fixture efficiently distributes light with an efficacy up to 130 LM/W. Available in 2 ft, 4 ft, and 8 ft lengths with power options of 20 W, 40 W, or 80 W, it offers a wide range of brightness levels for tailored illumination. It supports multiple color temperatures (3000 K to 6500 K) and dimming via 0-10 V control, adapting easily to mood and task requirements. Rated IP65 for dust and water protection and certified by ETL, TUV, SAA, and CE, this fixture guarantees reliability and safety for residential or commercial users.
Versatile Applications for Everyday Spaces
This LED Vapor Tight Fixture excels in environments such as garages, basements, parking canopies, and storage rooms where moisture and dust can be problematic. Its robust sealing and impact resistance make it suitable for both new installations and retrofits, providing bright, consistent lighting that improves visibility and security. Ideal for spaces that require tough lighting without sacrificing style or efficiency, it integrates seamlessly into existing electrical systems and accommodates low-maintenance, long-life needs, enhancing both safety and convenience.
● Product Advantages
Designed with durability and long-term use in mind, the LED Vapor Tight Fixture features a sealed polycarbonate diffuser and a sturdy steel reflector that protect internal components from harsh conditions. Its IP65 rating ensures resistance to dust and water ingress, making it tough enough for damp and dusty spaces. The fixture’s tool-less installation simplifies setup, whether replacing old lighting or outfitting a new space, allowing users quick and safe mounting. These design elements collectively ensure a reliable system that stands up to everyday challenges while maintaining clean, even light distribution.
User-Friendly Performance and Energy Efficiency
The LED Vapor Tight Fixture delivers exceptional lighting performance with high efficacy and multiple color temperature options to suit different activities and moods. Its 0-10 V dimming capability allows smooth brightness adjustments, giving you control over ambiance and energy usage. This fixture combines long lifespan and low maintenance to save time and costs over many years. With certified safety and environmental compliance, it provides peace of mind alongside superior lighting quality, making it a user-centric solution that balances comfort, convenience, and practicality.
● Options
● Installation method: Surface Mounted, Suspending

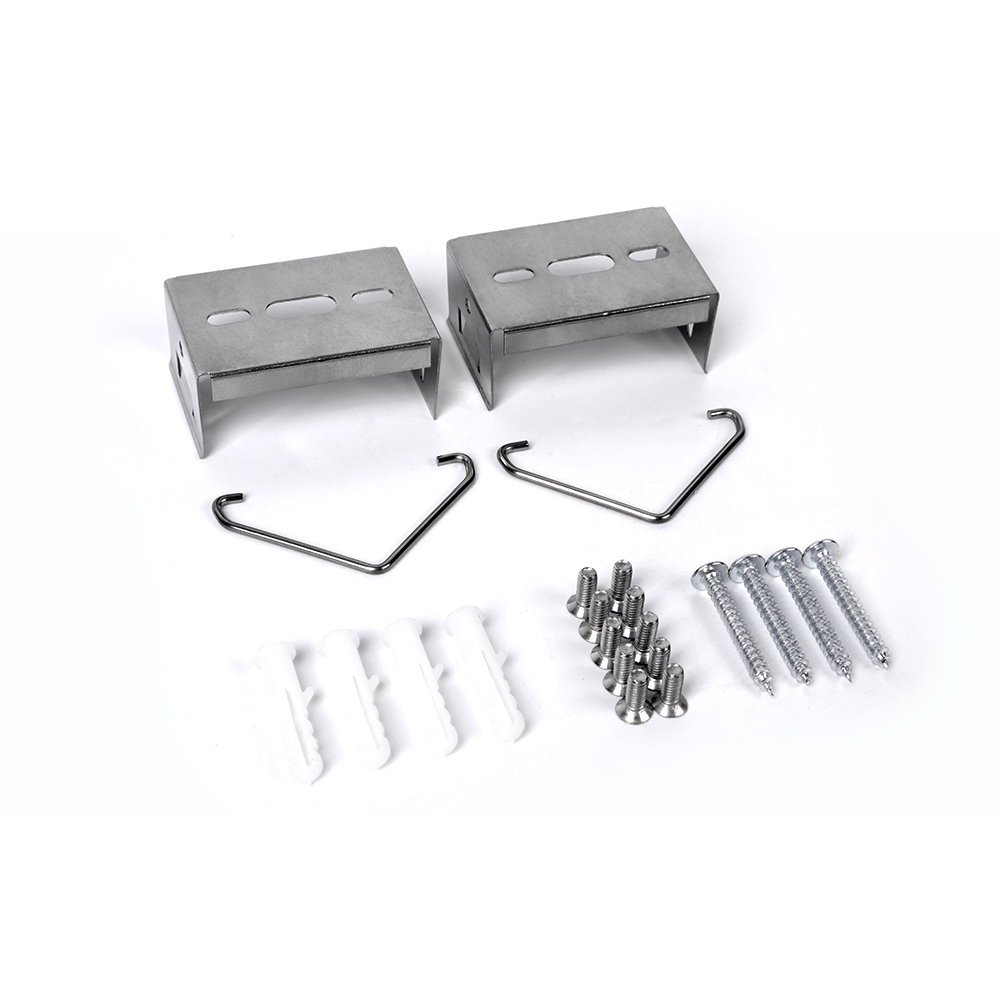

● Installation accessories: Standard Clip included / Suspending Kit (Sold separably)
● Product Line Drawing (Size:mm) ● Light Distribution Curve
● Standard Accessories

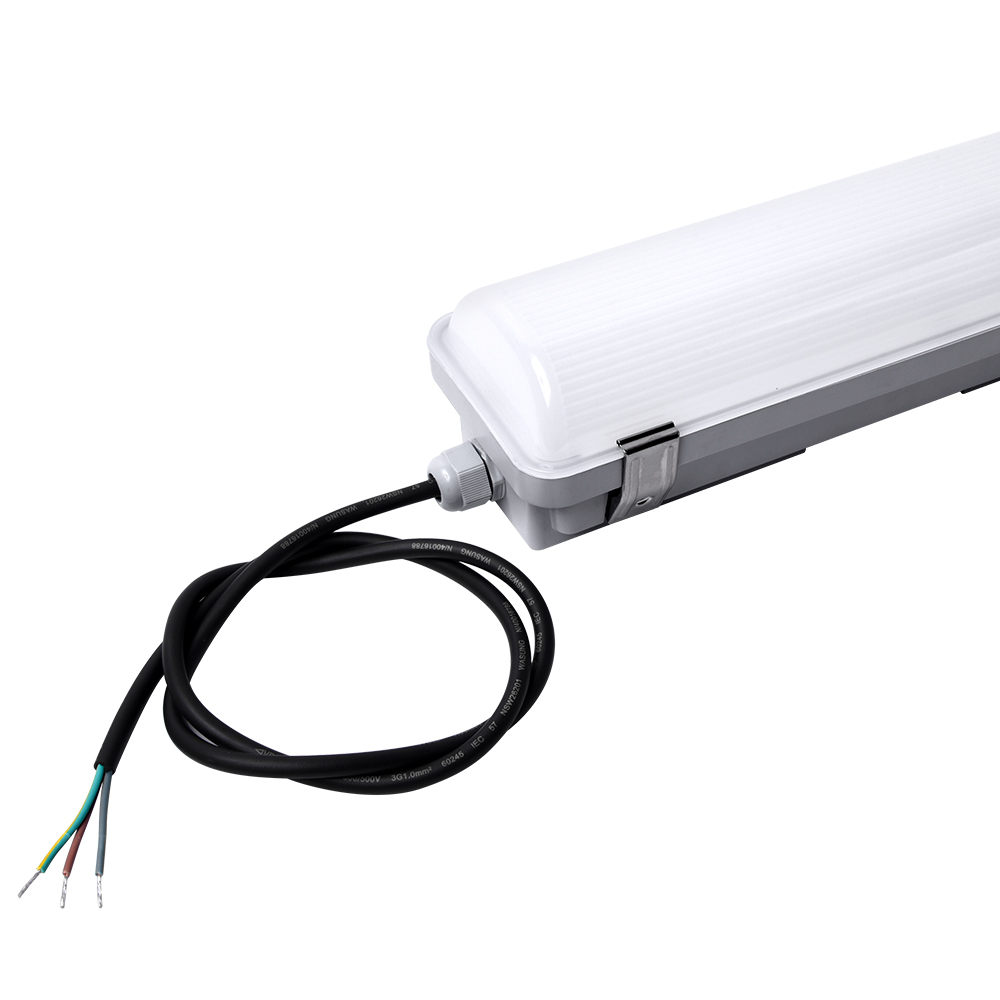

One 100mm power cord, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
● Use Scenarios
Reliable Illumination in Parking Garages and Canopies
In parking garages and covered canopies, lighting must withstand moisture, dust, and occasional impacts while maintaining brightness for safety and security. The LED Vapor Tight Fixture meets these requirements with its rugged, waterproof, and dust-proof design (IP65 rated), providing consistent illumination that enhances visibility for drivers and pedestrians. Its robust construction ensures durability against environmental stress, while easy installation and dimmable options enable effortless integration with existing lighting controls and energy management systems in these high-traffic areas.
Durable Lighting Solutions for Warehouse Environments
Warehouses require tough lighting solutions that provide bright, uniform illumination to support long working hours and efficient operations. The LED Vapor Tight Fixture is perfectly suited to these conditions, featuring high lumen output and an impact-resistant, sealed body that protects against dust and occasional contact. Its various length and wattage options allow customized lighting layouts that suit different warehouse zones, improving safety and productivity. In addition, low maintenance demands and energy efficiency reduce operational costs, making it a smart choice for warehouse lighting upgrades.
● FAQ
What are the main materials used in the construction of the LED Vapor Tight Fixture?
The LED Vapor Tight Fixture features a polycarbonate diffuser and a flat steel reflector housing all electrical components. These materials support durability and impact resistance, making the fixture dust-proof and waterproof to meet harsh environment demands.
Can I customize the color temperature and wattage of the LED Vapor Tight Fixture?
Yes, the LED Vapor Tight Fixture offers a range of CCT options from 3000 K to 6500 K and wattage choices of 20 W, 40 W, and 80 W. This flexibility allows you to select the most suitable lighting configuration for your specific commercial space needs.
What installation features make the LED Vapor Tight Fixture user-friendly?
This fixture uses a tool-less design to simplify installation. Integrated components are housed securely for straightforward mounting, reducing setup time while maintaining safety and reliability, which are essential for commercial and industrial customers.
How is the LED Vapor Tight Fixture maintained and how long does it last?
With sealed construction and IP65 protection, the LED Vapor Tight Fixture requires minimal maintenance even in challenging conditions. Its durable design ensures a long life span, supported by high-quality LED chips and certifications like ETL and CE for dependable performance.
