● Product Description

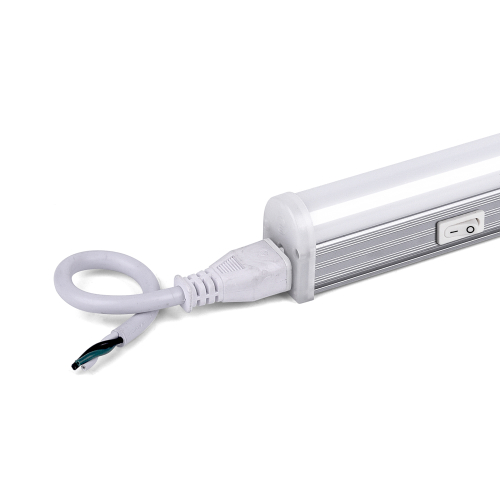

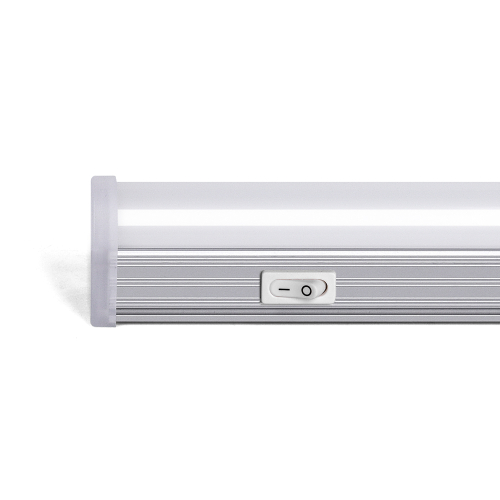

Single T5 integrated light with high-efficiency and ON/OFF light engine for long life and excellent color to ensure the quality of the lighting. It can be connected to an optional cable or connector.
| Technical Specifications | |
| Input Voltage | AC120V/AC180-240V 50/60Hz |
| Total harmonic distortion | THD<19% |
| Power Factor | PF>0.95 |
| Efficiency | 110-130LM/W |
| Color Index | Ra>82 |
| Switching Time | 100,000 |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -10°C ~ +50°C |
| UGR | <19 |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
● Features
● One-piece Aluminum chassis

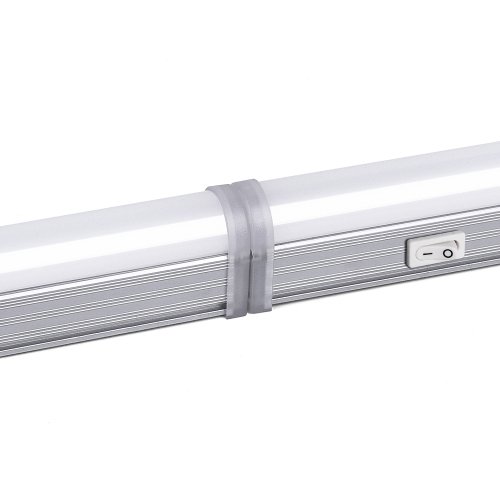

● Patent Male-female linkable design
● Seamless & No Dark in-line connection
● ETL TUV SAA approved
● 0.8mm aluminum housing for excellent heat dissipation
● Applications
● Replaces fluorescent NCF fittings
● Warehouses, factories & food storage,gymnasium
● Car parks & sports facilities, Kitchens,shopping malls
| Specifications | |||||
| Model | Length | Power | Led type | Lumens (lm) ±10% | Package |
| LY-T5DL300-4W | 1ft/300mm | 4W | SMD2835 | 440 - 480 | 490*175*230 (mm) 25pcs/ctn |
| LY-T5DL600-7W | 2ft/600mm | 7W | SMD2835 | 770 - 840 | 780*175*230 (mm) 25pcs/ctn |
| LY-T5DL900-12W | 3ft/900mm | 12W | SMD2835 | 1320 - 1440 | 1085*175*230 (mm) 25pcs/ctn |
| LY-T5DL1200-15W | 4ft/1200mm | 15W | SMD2835 | 1650 - 1800 | 1390*175*230 (mm) 25pcs/ctn |
| LY-T5DL1500-20W | 5ft/1500mm | 20W | SMD2835 | 2200 - 2400 | 1690*175*230 (mm) 25pcs/ctn |
| LY-T5DL1800-22W | 6ft/1800mm | 22W | SMD2835 | 2420 - 2640 | 1950*175*190 (mm) 20pcs/ctn |
| LY-T5DL2400-30W | 8ft/2400mm | 30W | SMD2835 | 3300 - 3600 | 2565*175*145 (mm) 15pcs/ctn |
● Options
● Fuctions: Standard Version / Triac Dimmable Version / ON-OFF Swith

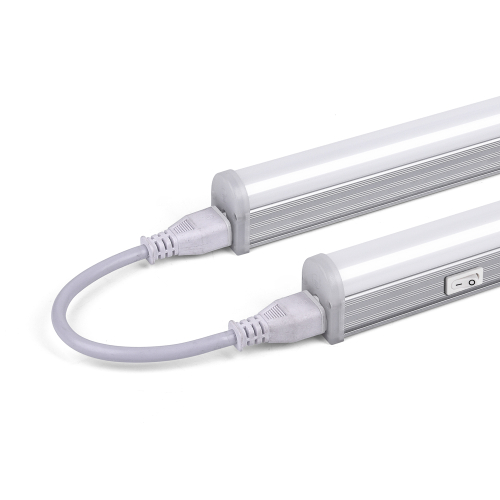

● Connection Way: Lead in wire / M-F Connection / Power cord with Plug
● Installation Type : Standard Clip / Magnetic Clip / Suspending Kits
● Cover: Milky / Clear
● Product Line Drawing (Size:mm) ● Light Distribution Curve
One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram for below for proper installation
● Use Scenarios
Efficient Lighting Solution for Retail Environments
In retail settings focused on product visibility and shopper comfort, the ON/OFF Switch T5 Integrated LED Tube replaces aging fluorescent fixtures, delivering crisp and consistent light across display areas. Its varied color temperatures allow stores to tailor lighting ambiance to merchandise and customer preferences. The integrated ON/OFF switch simplifies staff operation without added controls, and its seamless retrofit capabilities enable rapid installation with minimal disruption to store hours. Compliance with safety certifications ensures reliable operation in busy commercial locations, helping stores maintain energy efficiency and superior visual appeal as part of their lighting strategy.
Warehouse and Industrial Facility Lighting Enhancement
Within warehouses and distribution centers where durable, low-maintenance lighting is critical, this integrated LED tube meets operational demands by offering long service life and uniform illumination. Its robust aluminum body supports heat management essential for industrial environments, and the simple ON/OFF switch controls enable fast lighting activation. The product’s compatibility with multiple input voltages and installation options facilitates integration into existing electrical systems. By providing consistent, energy-efficient lighting, it supports worker safety, productivity, and reduced energy consumption in industrial workflows.
● FAQ
What materials are used in the ON/OFF Switch T5 Integrated LED Tube construction?
The ON/OFF Switch T5 Integrated LED Tube features a robust one-piece aluminum chassis combined with a PC cover. This design ensures excellent durability and efficient heat dissipation, contributing to a long lifespan of up to 50,000 hours for reliable performance.
Can the ON/OFF Switch T5 Integrated LED Tube be customized in terms of length and color temperature?
Yes, the ON/OFF Switch T5 Integrated LED Tube is available in multiple lengths ranging from 1 ft to 8 ft and supports color temperatures between 3000K and 6500K, allowing users to tailor lighting for different environments like offices or retail spaces.
What installation options are available for the ON/OFF Switch T5 Integrated LED Tube?
Installation is flexible with options including lead-in wire connection, MF (male-female) connectors, or plug-in power cords. The tube supports AC120V and AC100-240V input voltages, making it easy to retrofit existing T5 fluorescent fixtures with minimal effort.
How does LONYUNG ensure quality and certification compliance for their LED tubes?
LONYUNG LED Lighting products, including the ON/OFF Switch T5 Integrated LED Tube, undergo strict quality controls at multiple production stages and are certified by ETL, TUV, CE, and SAA. This guarantees safe, reliable lighting solutions for commercial and industrial use.
