● Product Description

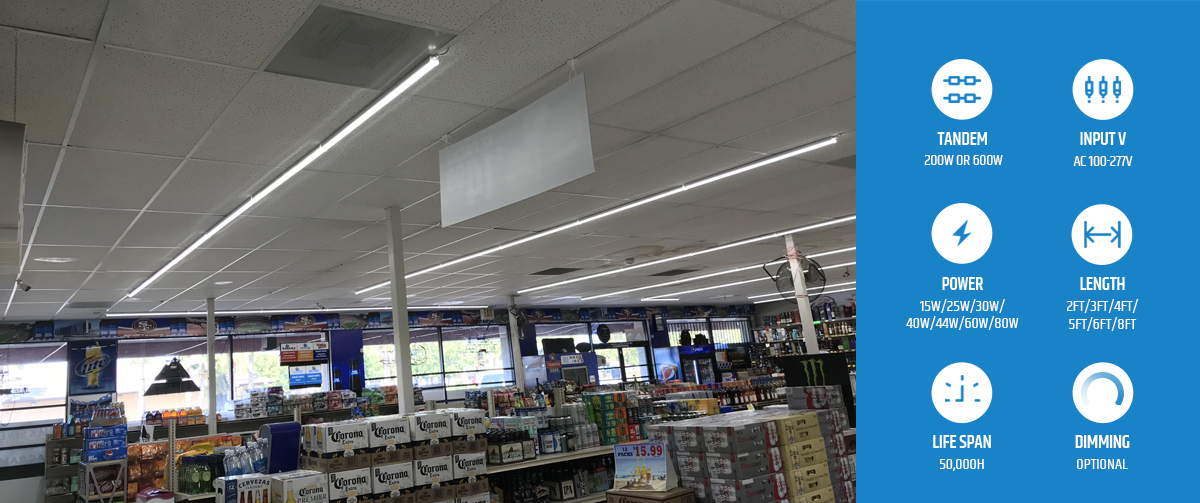

Double T5 LED Integrated Tube Light combines energy-saving LED technology with advanced design to provide a superior lighting experience for indoor spaces. Featuring double-row LED arrays, it enhances luminous output and uniformity, ensuring bright and comfortable illumination in a variety of applications. The integrated linear fixture delivers a high luminous efficacy of up to 160 lumens per watt, which significantly reduces energy use compared to traditional fluorescent lighting systems.
This LED tube is engineered with a patent male-female linkable design, allowing fixtures to be seamlessly connected in line for continuous, no-dark-spot lighting runs that are neat and efficient — perfect for large spaces such as warehouses, retail aisles, or offices. The durable aluminum housing and PC cover provide excellent heat dissipation and long-term reliability, while the internal driver and heat protection system ensure consistent performance even in demanding environments.
Available in various lengths ranging from 2 ft to 8 ft and multiple wattages, the Double T5 integrated tube supports versatile lighting layouts tailored to any space. Its broad input voltage range and multiple color temperature options make it adaptable to commercial, industrial, and residential settings, enhancing lighting quality without frequent maintenance.
| Technical Specifications | |
| Input Voltage | AC100-277V 50/60Hz |
| Max Connection wattage | 200W or 600W |
| Power Factor | PF>0.9 |
| Efficiency | 110-160LM/W Available |
| Color Index | Ra>80 |
| Dimming | Triac or 0-10V available |
| Lumen maintenance @6000h | >80% |
| Operation Temperature | -20°C ~ +50°C |
| Finish | Silver |
| Life Span | 50,000 hours |
| CCT | 3000K,4000K,5000K,6000K |
| Material | Aluminum + PC |
● Features
● High Efficiency Lighting: With up to 160 lm/W luminous efficacy, this double-row LED tube light delivers bright, quality illumination while reducing energy consumption.

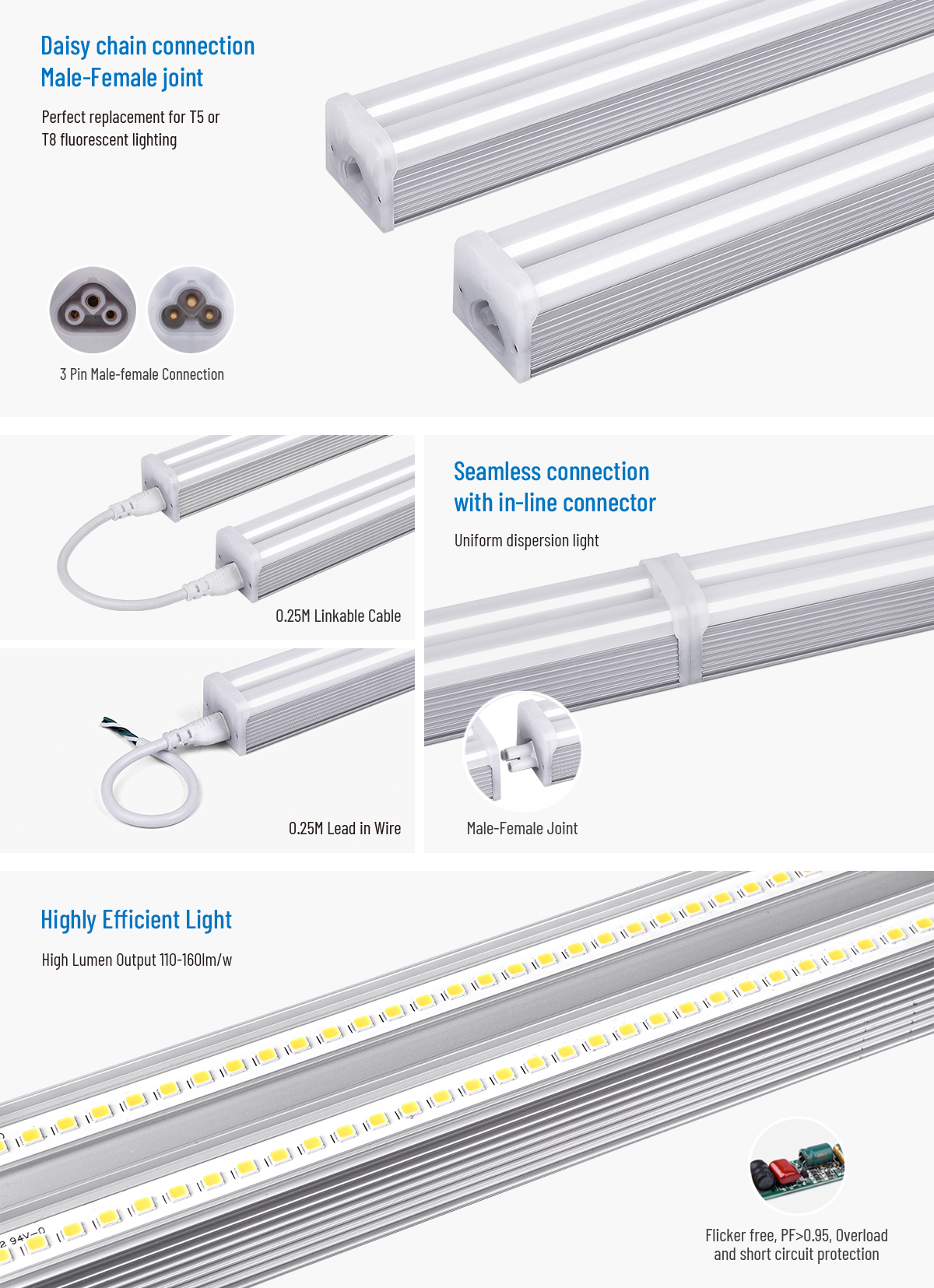

● Seamless Linkable System: Patent male-female linkable design allows multiple fixtures to connect inline with no dark spots, ideal for continuous lighting layouts.
● Long Life & Durability: Built with premium aluminum housing and PC cover, the tube has a lifespan up to 50,000 hours, reducing maintenance and replacement frequency.
● Wide Voltage & Multi-CCT Options: Works with AC100-277V input and available in multiple color temperatures (3000K / 4000K / 5000K /5700K / 6000K) for flexible lighting environments.
● Certified Safety & Easy Install: ETL, TUV, CE, RCM and DLC listed for safety and performance, plus hassle-free installation with optional mounting and connector accessories.
| Double T5 Tube Light Specifications | ||||||||
| Model | Length | Power | CCT | Cover | CRI | PF | Lumens (lm) ±10% | Package |
| LY-T5SL600-15W | 2ft/600mm | 15W | 3000K 4000K 5000K 5700K 6000K |
Frosted Clear |
＞80 | ＞0.9 | 1650 - 1800 | 710*260*180 (mm) 20pcs/ctn |
| LY-T5SL900-25W | 3ft/900mm | 25W | ＞80 | ＞0.9 |
2750 - 3000 | 1015*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1200-30W | 4ft/1200mm | 30W | ＞80 | ＞0.9 |
3300 - 3600 | 1310*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1200-40W | 4ft/1200mm | 40W | ＞80 | ＞0.9 |
4400 - 4800 | 1310*260*180 (mm) 20pcs/ctn | ||
| LY-T5SL1500-40W | 5ft/1500mm | 40W | ＞80 | ＞0.9 |
4400 - 4800 | 1645*210*180 (mm) 16pcs/ctn | ||
| LY-T5SL1800-44W | 6ft/1800mm | 44W | ＞80 | ＞0.9 |
4840 - 5280 | 1945*210*180 (mm) 16pcs/ctn | ||
| LY-T5SL2400-60W | 8ft/2400mm | 60W | ＞80 | ＞0.9 |
6600 - 7200 | 2445*160*146 (mm) 9pcs/ctn | ||
| LY-T5SL2400-80W |
8ft/2400mm | 80W | ＞80 | ＞0.9 |
8800 - 9600 | 2445*160*146 (mm) 9pcs/ctn | ||
● Applications
● Directly replaces T8/T12 fluorescent fittings
● Warehouses, factories & food storage
● Supermarket, shopping malls, office
● Home, hotel, parking lot, garage etc

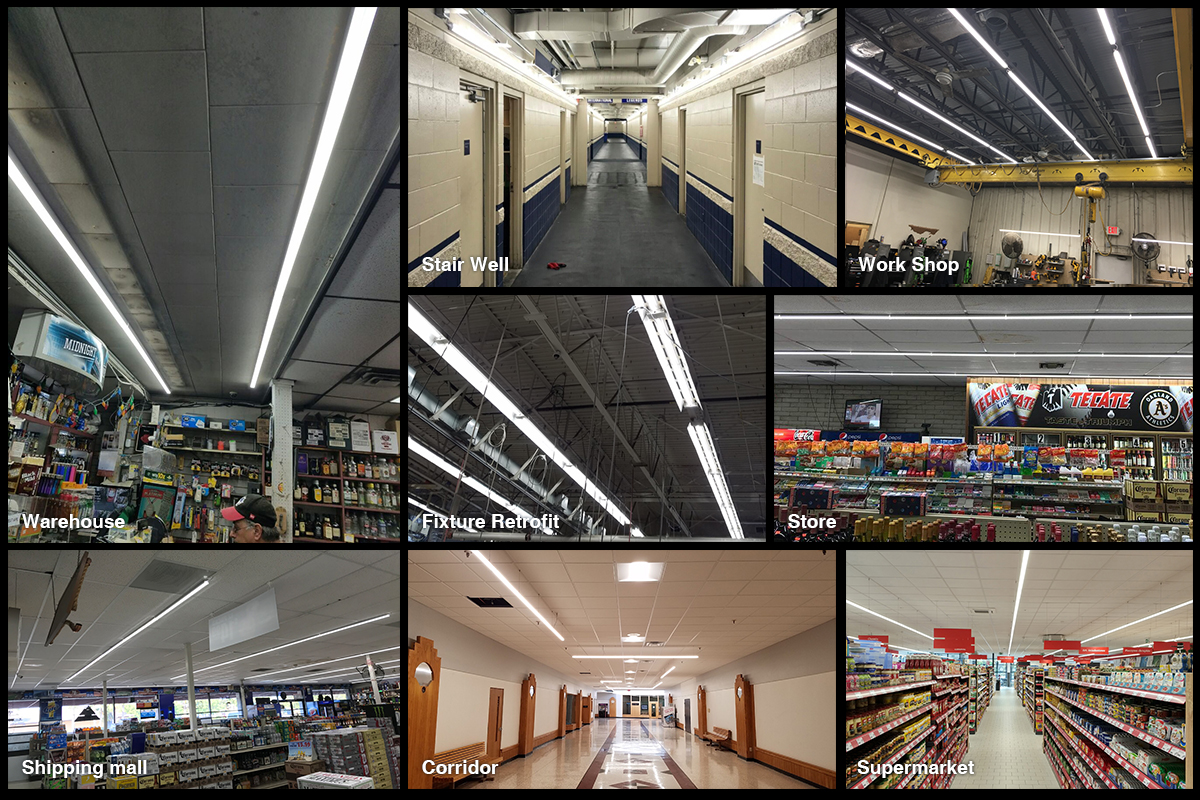

Below is our clients's great feedback photos.
● Options
● Connection Way: Lead in wire / M-F Connection / Power cord with Plug
● Installation Type Available: Standard Clip / Magnetic Clip / Suspending Kits

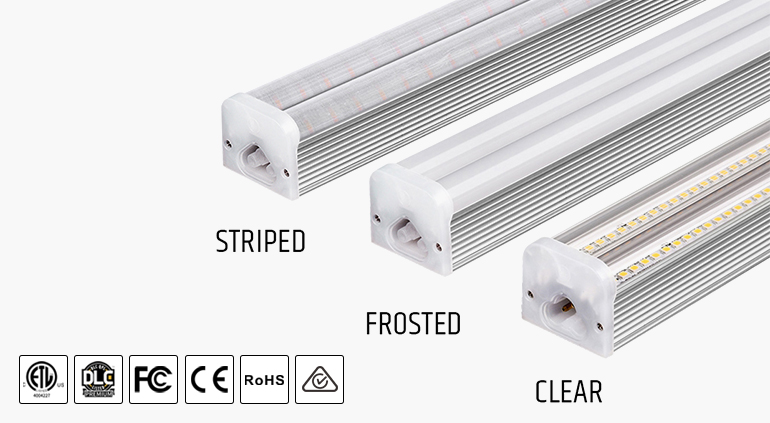

● Double T5 Tube light Cover Options: Milky / Clear / Striped
● Product Line Drawing (Size:mm) ● Light Distribution Curve
● Standard Accessories
One 250mm power cord, one 250mm connection cable, one small connector, clips and screws...
(Length for power cord or connection cable can be customized for led t5 tube)
● Installation
● To avoid electric shock, maintenance and installation should only be carried out by a professional electrician
● Please use it under correct input power range
● Do not use in the outdoor environment
● Before installation, turn off the power to make sure safety
● Follow the diagram below for proper installation
● FAQs about Dual T5 Tube Light
Q1: What is a Double T5 LED Integrated Tube Light?
A: It’s an all-in-one LED tube light that uses two rows of LEDs to provide higher brightness and even illumination, designed to replace fluorescent T5/T8 lighting.
Q2: Can multiple tubes be linked together?
A: Yes. Thanks to its patent male-female linkable design, you can connect multiple fixtures inline with no dark spots for continuous lighting.
Q3: What color temperature options are available?
A: This LED tube is available in multiple color temperatures including 3000K, 4000K, 5000K, 5700K and 6000K to match different lighting preferences.
Q4: Where can this product be used?
A: It is ideal for commercial, industrial, and residential indoor spaces such as warehouses, offices, supermarkets, hotels, and garages.
Q5: How long is the lifespan of this LED tube light?
A: The Double T5 LED Integrated Tube Light has a long lifespan of up to 50,000 hours, reducing maintenance and replacement needs.
● About Us - LONYUNG LED Lighting
Founded in 2010, LONYUNG Lighting has grown into a leading innovator in the commercial and industrial LED lighting industry. With a strong commitment to technology, design, and sustainability, we specialize in creating linear lights, LED linear high bay lights, and tri-proof lights that redefine lighting performance. Our manufacturing facility adheres to international standards, ensuring high-quality products trusted by global customers across retail, office, industrial, and warehouse applications.
● Why Choose Us
